Adjust 12 and 16 Row Seed and Fertilizer Transmission Wheel Engagement Point

NOTE: Tire scrapers are available. See your John Deere dealer.

The seed or fertilizer transmission engages when machine is lowered into planting position (transmission wheel contacts drive wheel) and disengages when machine is raised.

NOTE: To engage drive sooner - increase dimension (B). To engage drive later - decrease dimension (B).

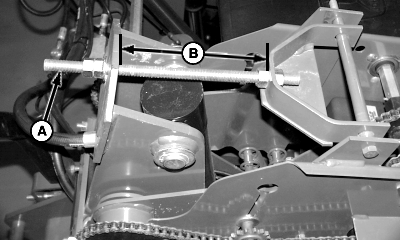

Adjust cap screw (A), to establish engagement point of transmission wheel with drive wheel. As a starting point, adjust dimension (B) to 200 mm (7.9 in.).

A-Cap Screw
B-Dimension
