Check Valves

CAUTION: To avoid injury from escaping hydraulic oil, relieve pressure from system.

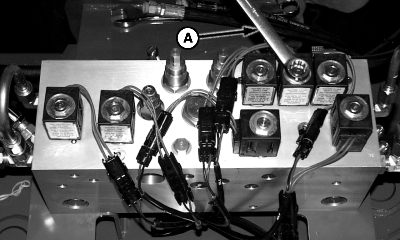

A47959
A47959-UN-13SEP01

Foreign material can work its way into the valves and cause them to stick open or closed. To check the valves, proceed as follows:

  1. Lower planter with engine running.

  2. Place hydraulic lever in “Float” position and PLANT-TRANS switch in “Plant” position. Depress all remaining switches in both directions.

  3. Place PLANT-TRANS switch in “Trans” position. Depress all remaining switches in both directions.

  4. Leave SCV in “Float” position and shut off engine.

  5. Clean area around solenoid of any debris.

  6. NOTE: Some solenoid covers have a thin washer beneath the cover.

    Remove from solenoid:

    • nut
    • thin washer, if equipped
    • cover

  7. Lift solenoid from valve.

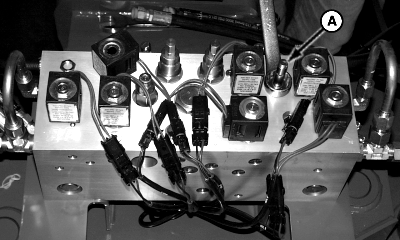

  8. A47960
    A47960-UN-13SEP01

    A - Valve

    Remove valve (A).


  9. Place valve in solvent and press poppet inside of valve back and forth to dislodge any foreign material from the valve.

  10. Inspect threads on both ends of valve for rust or oxidation. Use a wire brush to clean threads.

  11. IMPORTANT: Do not overtighten valves. Valve bodies distort and cause valves to stick or hang up.

    NOTE: SV1 or SV3 is stamped on hex of valve.

    Install valve. Tighten SV3 valves (small hex valve) to specification.

    ItemMeasurementSpecification
    SV3 ValveTorque47.5 N·m (35 lb.-ft.)

    Tighten SV1 valves (large hex valve) to specification.

    ItemMeasurementSpecification
    SV1 ValveTorque102 N·m (75 lb.-ft.)

  12. Install solenoid and washers.

  13. Install nut on top of solenoid. Tighten nut to specification.

    ItemMeasurementSpecification
    NutTorque6.5 N·m (57 lb.-in.)

  14. If problem still exists, replace valve.


Counter-Balance Valves

CAUTION:

A64629
A64629-UN-07MAY09

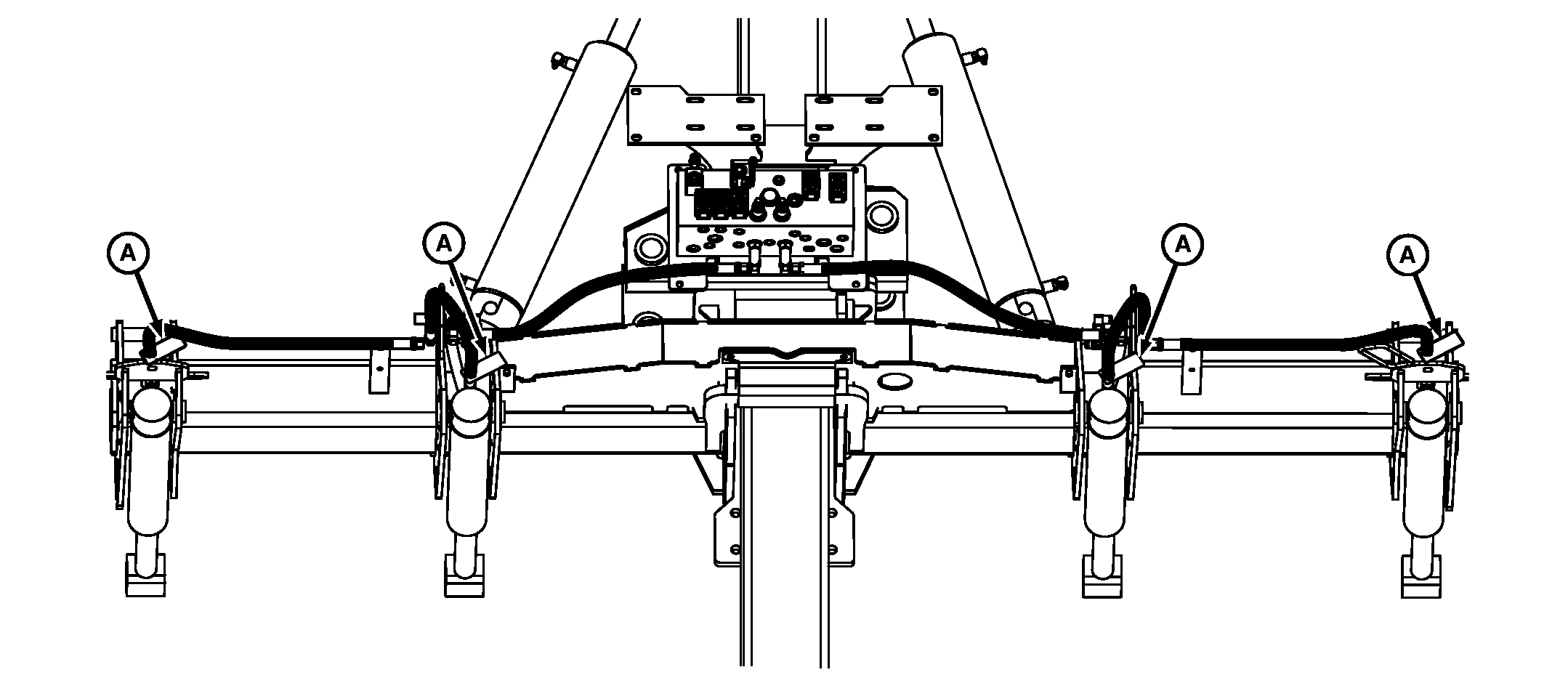

Warning Tag Location

SSA70882
SSA70882-19-15OCT04

A—Warning Tag

Before disconnecting main frame lift cylinder hoses (A), place control box in “Plant” position. Lower machine to the ground. Hydraulic pressure must be relieved. Refer to tractor Operators Manual for SCV operation.

Machine is equipped with two counter balance valves inside the main valve body. Counter balance valves are used as a safety feature to hold the machine in the up position.

Before removing hose from base end of lift cylinders:

  • Lower planter completely with engine running.
  • Place PLANT-TRANS switch in “Plant” position.
  • Place hydraulic lever in “Float” position.
  • Depress all remaining switches in both directions.
  • Place PLANT-TRANS switch in “Trans” position.
  • Depress all remaining switches in both directions.
  • Leave SCV in “Float” position and shut off engine.
