Adjust Closing Wheel Spacing

NOTE: Spacing between closing wheels is adjustable, so closing system can be tailored to meet the requirements of planting small seeds at shallow depths.

A46774
A46774-UN-13OCT00

A46775
A46775-UN-12OCT00

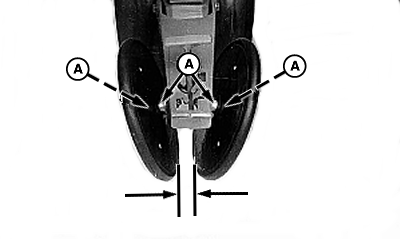

A - Nuts and Spacers

To change spacing, remove nuts and spacers (A). Install closing wheels with spacers located to the outside (for narrow spacing) or to the inside (for wide spacing).

AG,OUO6074,1205-19-20070808
