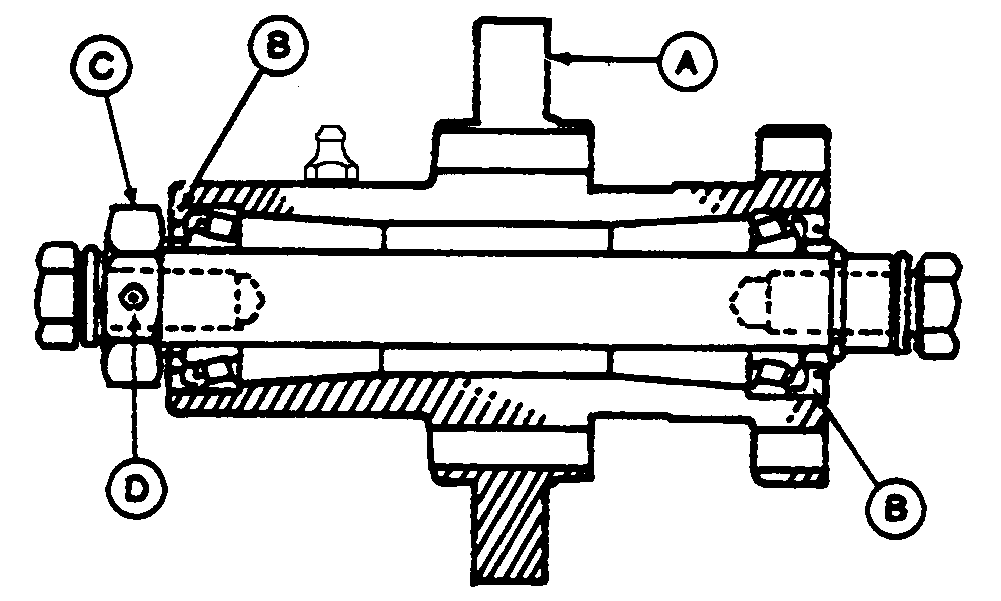

Service 6-Bolt Hub Wheel Bearing

A47962-UN-21SEP01

A - Wheel Hub

B - Seals

C - Jam Nut

D - Set Screw

Should wheel hub (A) be disassembled for any reason, clean, and repack bearing with wheel bearing grease and assemble on axle. Do not damage seals (B). Install special jam nut (C) on axle shaft. While turning hub, adjust jam nut until a slight drag is felt. Once this drag is established, tighten set screw (D) on jam nut.
