Partially Cleaning Out CCS Tanks

A52501
A52501-UN-01JUN04

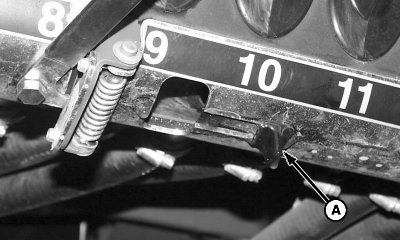

A - Door

To remove only a portion of seed from CCS tanks, there is a small variable cleanout door that can be opened or closed to control the amount of seed being removed.

Slide door (A) until desired amount of seed is coming out.

OUO1074,0001425-19-20031016
