Zeroing CCS Fan Pressure Gauge

A51170
A51170-UN-18NOV02

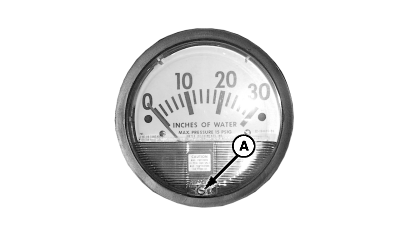

A - Zero Adjusting Screw

With CCS fan shut off and CCS gauge in a vertical position, disconnect CCS fan monitor line to vent gauge to atmosphere. Use the zero adjusting screw (A) to set the gauge pointer exactly on zero mark. Connect monitor line.
