Lubrication Intervals

Lubrication Intervals
Item	Start of Season	As Required	10 Hours or Daily	25 Hours	50 Hours	100 Hours	200 Hours	End of Season
All Roller Chains	●	●						●
Fertilizer Shut Off Valves	●							●
Quick-Fill Valve	●							●
Gauge Wheels			●
Hitch Pivot			●
Wing Flex Joints			●
Marker Pivot Pin			●
Single Disk Fertilizer Opener			●		●
24R Frame Mounted Coulter (if equipped)			●
Flex Shaft			●
12R and 16R Marker Pivot and Control Strap			●
Piston Pump Shafts (if equipped)			●
Piston Pump Crankcase			●
24R Variable Rate Pump Shafts (if equipped)			●
Tillage Support bracket			●
24R Fixed rate Pump Shafts (if equipped)			●
24R Variable Rate Pump Crankcase			●
24R Fixed rate Pump Crankcase			●
24R Frame Fold Point			●
24R Wing Flex Point			●
24R Fold Cylinder			●
24R Mechanical Transmission			●
24R Marker			●
Main Frame Wheel Modules				●
Wing Wheel Modules				●
Main Frame Cylinders Rod Ends				●
Wing Wheel Bearings					●
Drawbar Hitch (if equipped)					●
Fold Joints						●
Unit Mounted Single-Disk Fertilizer Openers							●
Unit Mounted Coulter							●
Unit Mounted Row Cleaners					●		●
Unit Mounted Row Cleaner Adjustment Arm							●

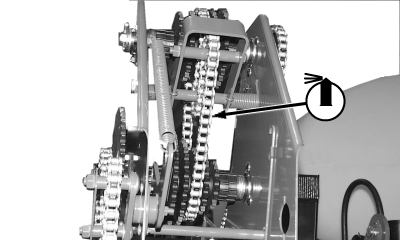

A47817-UN-13SEP01

12R and 16R Transmission Chain

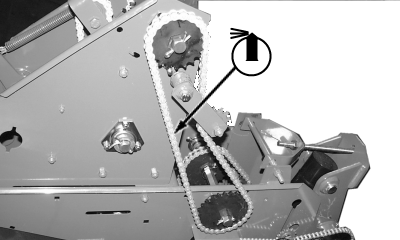

A47818-UN-13SEP01

12R and 16R Half-Width Drive Chain (If Equipped)

A47819-UN-13SEP01

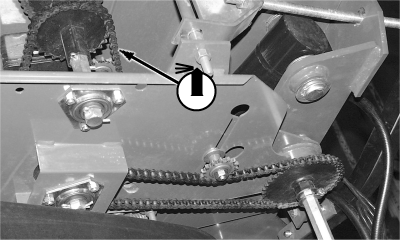

12R and 16R Half-Width Drive Chain

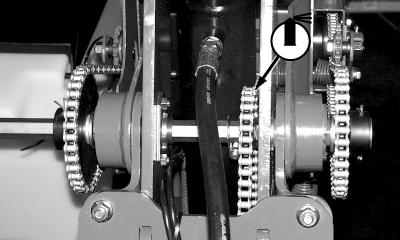

A47820-UN-13SEP01

12R and 16R Countershaft Drive Chains

A47822-UN-02AUG01

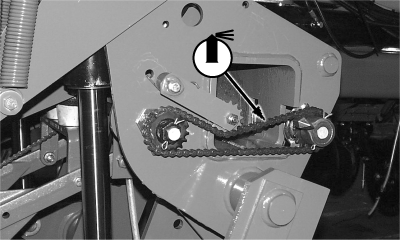

12R and 16R Drillshaft Wing Drive Chains Both Sides

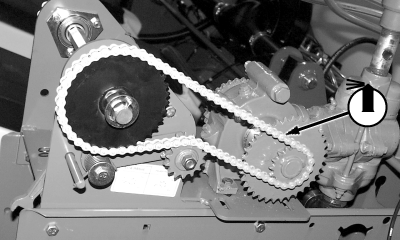

A47825-UN-13SEP01

12R and 16R Piston Pump Chain (If Equipped)

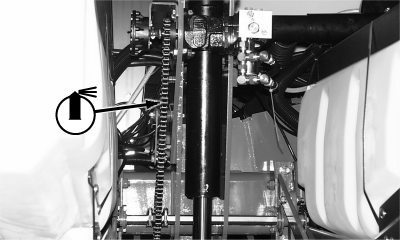

A47823-UN-02AUG01

12R and 16R Variable Rate Drive Chain (If Equipped)

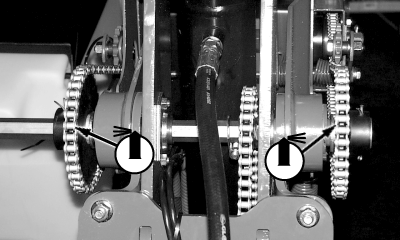

A47958-UN-13SEP01

12R and 16R LH and RH Countershaft Drive Chains (If Equipped)

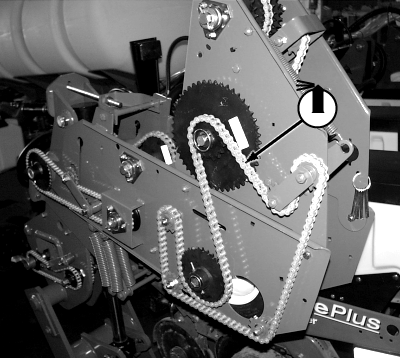

A47982-UN-14SEP01

12R and 16R Transmission Input Drive Chain (If Equipped)

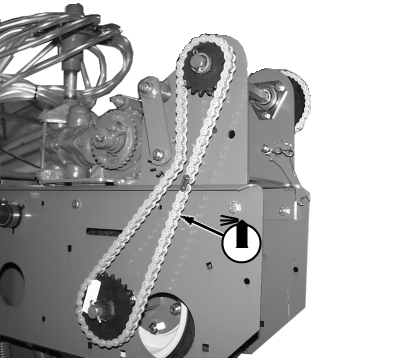

A47824-UN-25SEP01

12R and 16R Piston Pump Drive Chain (If Equipped)

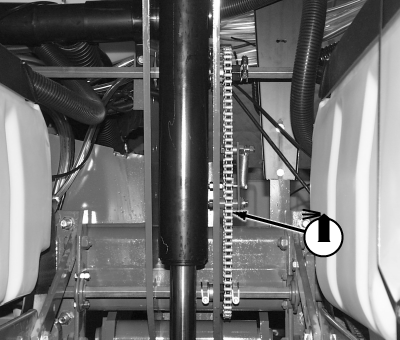

A47821-UN-13SEP01

12R and 16R Drillshaft Drive Chain

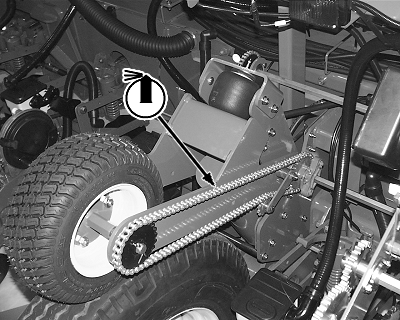

A52977-UN-01OCT03

24R Contact Wheel Drive Chains

A53274-UN-31OCT03

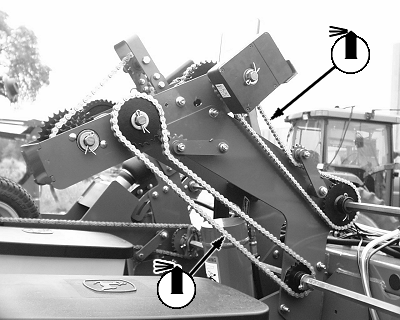

24R Transmission Chains

A52978-UN-01OCT03

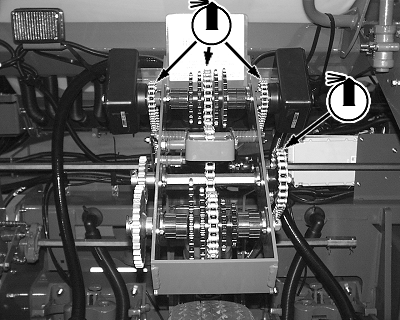

24R Transmission Chains

A52979-UN-01OCT03

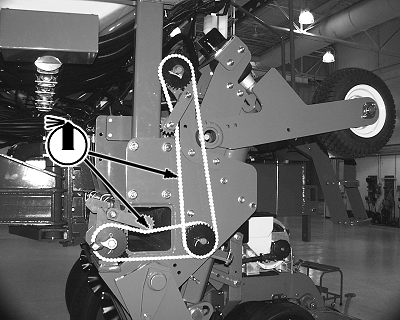

24R Drillshaft Drive Chains

A53276-UN-31OCT03

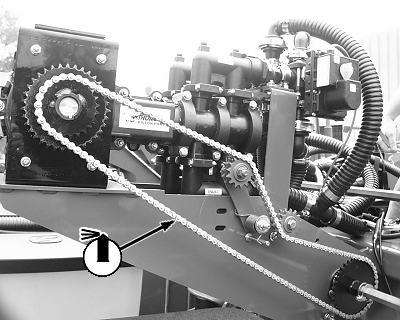

24R Fertilizer Pump Drive Chain (If Equipped)

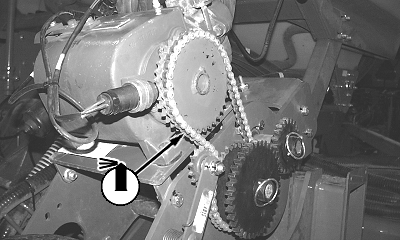

A53286-UN-31OCT03

24R Variable Rate Fertilizer Pump Chain (If Equipped)

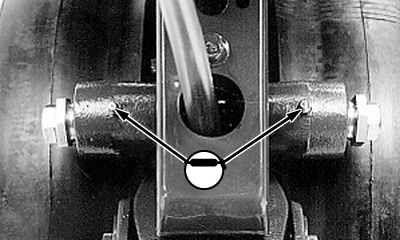

A38363-UN-16JUL08

Gauge Wheels

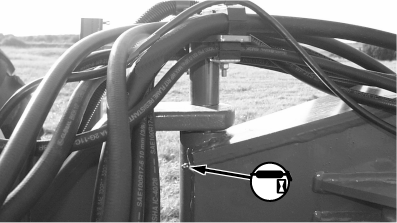

A49905-UN-02JUN08

12R and 16R Hitch Pivot

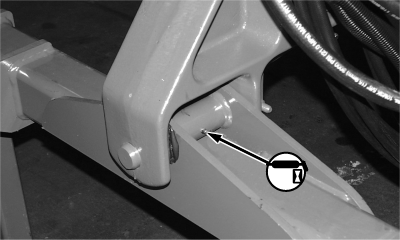

A47831-UN-30MAY08

12R and 16R Hitch Pivot

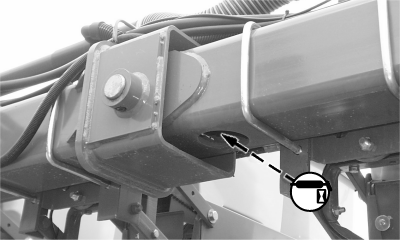

A47826-UN-30MAY08

12R and 16R Wing Flex Joints

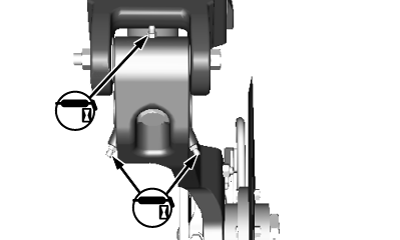

A51065-UN-30MAY08

12R and 16R Frame Mounted Fertilizer Opener (If Equipped)

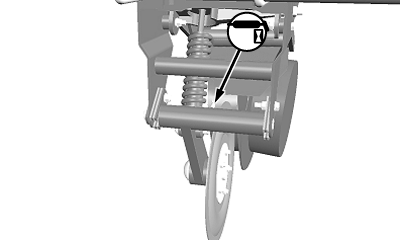

A56253-UN-30MAY08

12R and 16R Frame Mounted Coulter (If Equipped)

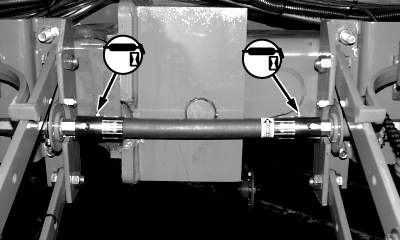

A53550-UN-02JUN08

12R and 16R Flex Shaft

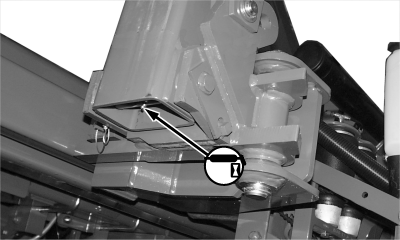

A47830-UN-30MAY08

Marker Pivot Pin

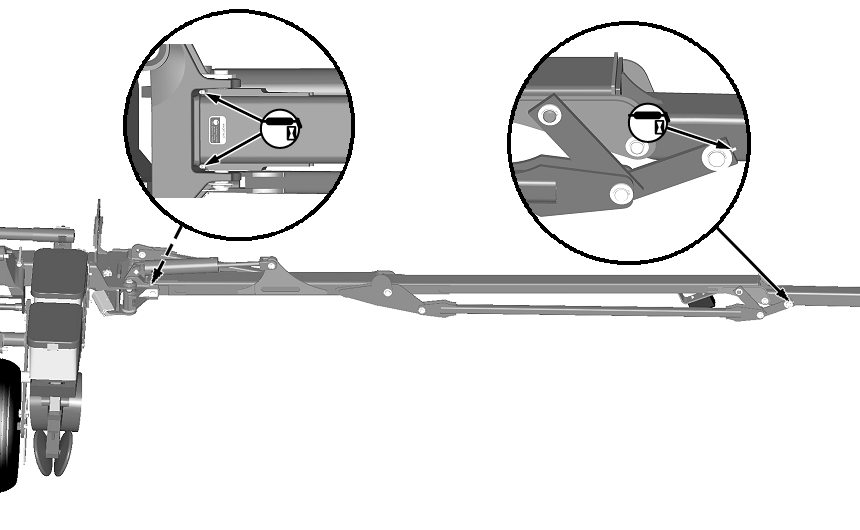

A56734-UN-02JUN08

12R and 16R Marker Pivot and Control Strap

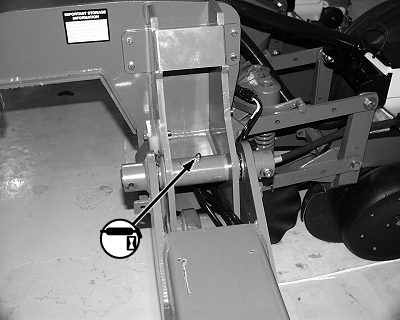

A52984-UN-01OCT03

24R Marker

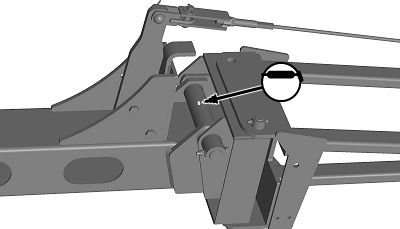

A53273-UN-31OCT03

24R Marker

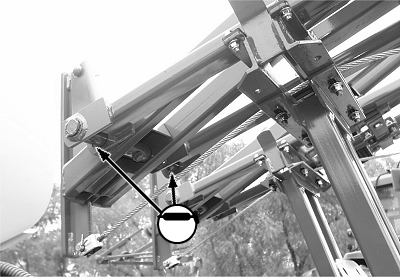

A52985-UN-31OCT03

24R Marker

A35436-UN-16JUL08

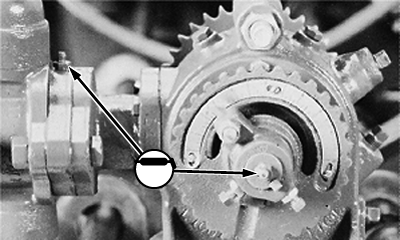

12R and 16R Piston Pump Shafts (If Equipped)

A35437-UN-21DEC92

12R and 16R Piston Pump (If Equipped)

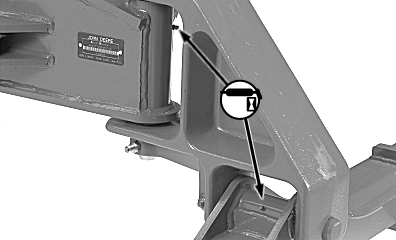

A64650-UN-15MAY09

Hitch Pivot

A47117-UN-30MAY08

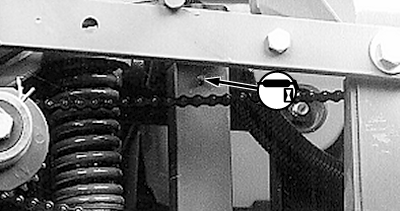

24R Tillage Support Bracket (If Equipped)

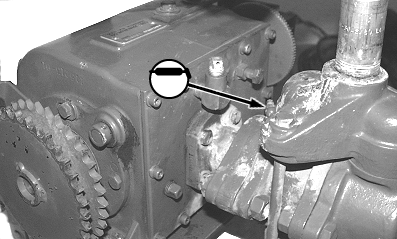

A53285-UN-31OCT03

24R Variable Rate Pump Shafts (If Equipped)

A51065-UN-30MAY08

24R Frame Mounted Fertilizer Opener (If Equipped)

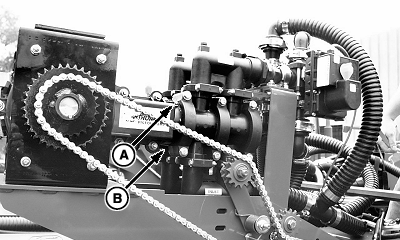

Cover weep hole (B) tightly with your finger. Pump grease into fitting (A) until the pressure pushes the grease past your finger. Repeat on other pump.

A53468-UN-10DEC03

24R Fixed Rate Pump Shafts (if equipped)

Variable Rate Pumps (If Equipped)

1.

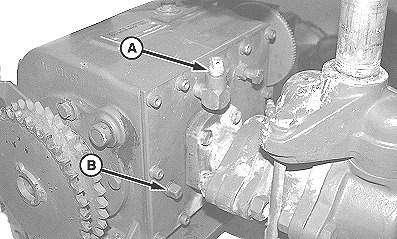

   A50018-UN-14NOV02

   A - Vent Plug

   B - Check Plug

   Lower machine to plant position before checking oil level.

---




2. Remove vent plug (A) and check plug (B).

3. Fill crankcase with TY6296 SAE 80W90 GL-5 gear lube or equivalent through vent port until lube is level with check port.

4. Install plugs.

5. Repeat on second pump.

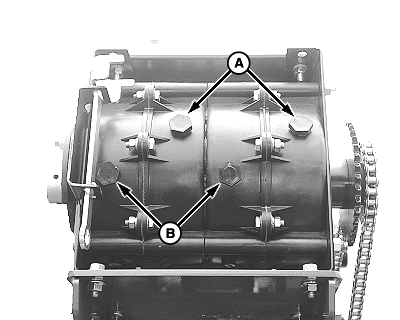

Fixed Rate Pumps (If Equipped)

A53059-UN-10OCT03

A - Fill Plugs

B - Check Plugs

1. Lower machine into plant position before checking oil level.

2. Remove fill plugs (A) and check plugs (B) from both pump crankcases.

3. Fill EACH crankcase with SAE 30 TY22070 Torq-Gard Supreme™ engine oil or equivalent at fill ports until oil is level with check ports.

4. Install plugs.

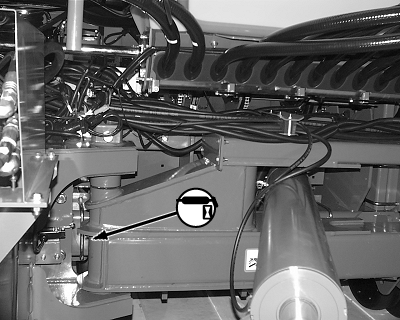

A52980-UN-01OCT03

24R Frame Fold Point

A52981-UN-01OCT03

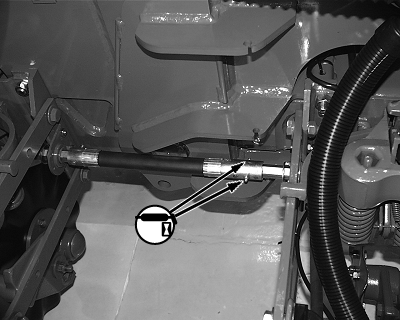

Flex Shaft

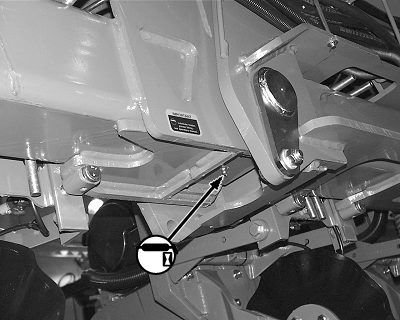

A52983-UN-01OCT03

24R Wing Flex Point

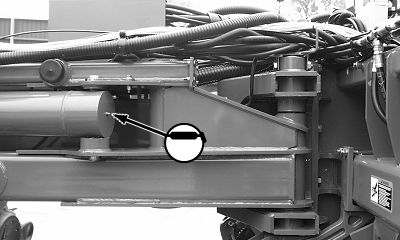

A53357-UN-18NOV03

24R Fold Cylinder

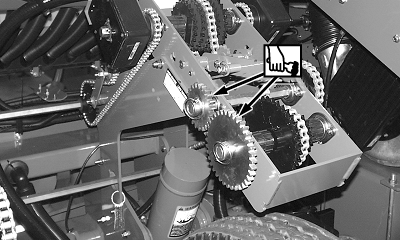

A53657-UN-30MAY08

24R Smear A Small Amount Of Grease

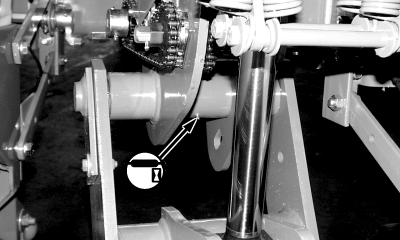

A47827-UN-30MAY08

12R and 16R Main Frame Wheel Modules

A47891-UN-30MAY08

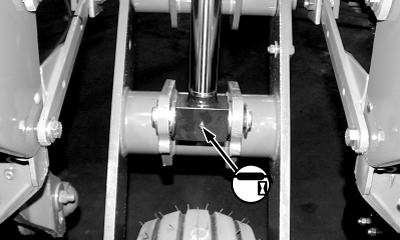

12R and 16R Main Frame Wheel Module

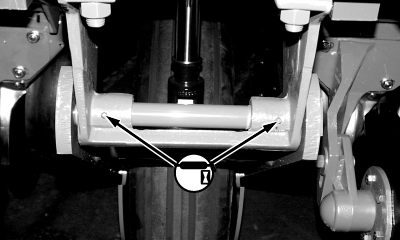

A47828-UN-30MAY08

Wing-Wheel Modules, 16 Row

A53546-UN-02JUN08

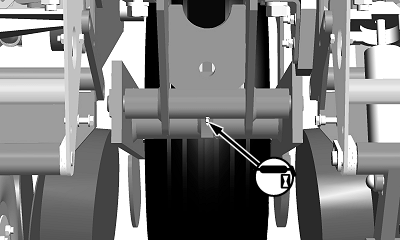

Wing-Wheel Modules, 12 Row

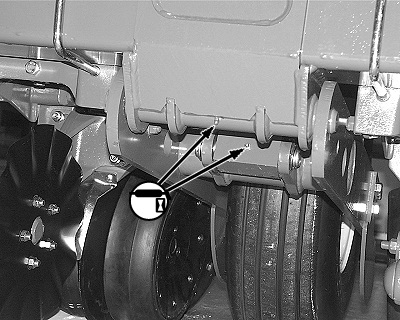

A52986-UN-01OCT03

24R Wing Wheel Module

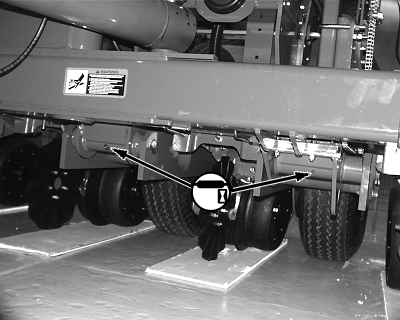

A52988-UN-01OCT03

24R Main Frame Wheel Module

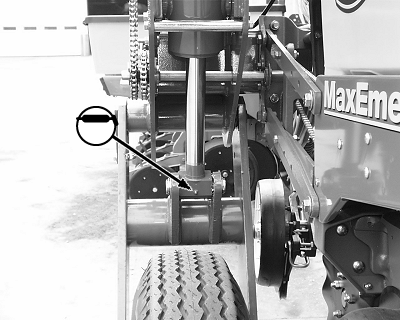

A53358-UN-18NOV03

24R Main Frame Cylinder, Rod End

A47238-UN-16JUL08

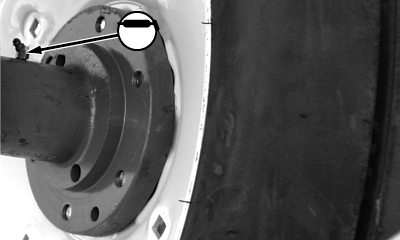

Wing Wheel Bearings

A52398-UN-07JUL03

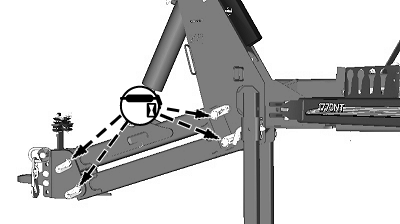

Drawbar Hitch (If Equipped)

A64844-UN-01JUN09

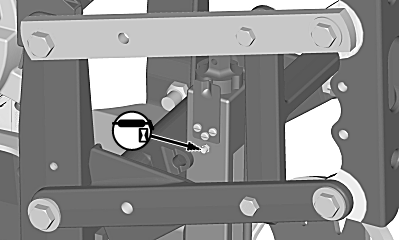

Unit Mounted Row Cleaner Adjustment Arm

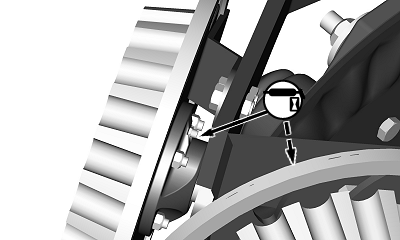

A64845-UN-01JUN09

Row Cleaner for Unit Mounted Coulter

A64843-UN-01JUN09

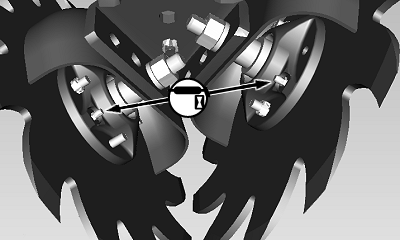

View From Under Unit Mounted Row Cleaner

A47829-UN-30MAY08

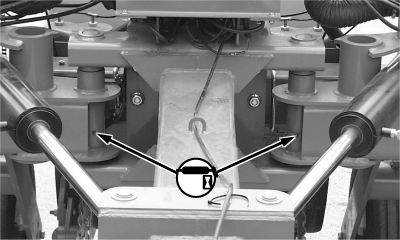

12R and 16R Fold Joints

A53429-UN-02JUN08

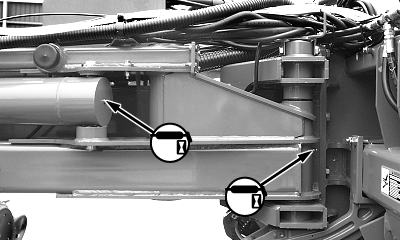

24R Fold Joints

A51069-UN-02JUN08

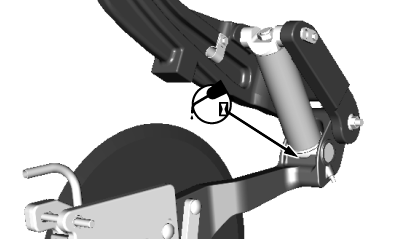

Single-Disk Fertilizer Opener (If Equipped)

A46093-UN-11APR00

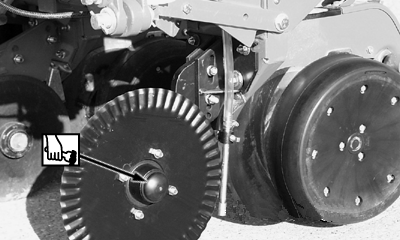

Unit Mounted Single-Disk Fertilizer Opener (If Equipped)

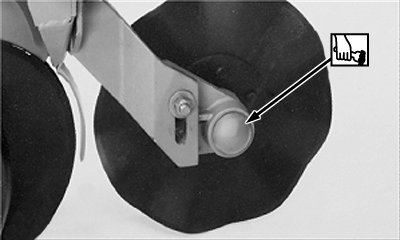

A29983-UN-16JUL08

Unit Mounted Coulter

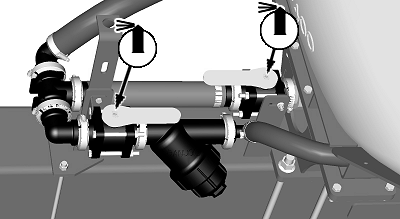

A53424-UN-02DEC03

Fertilizer Shut Off Valves

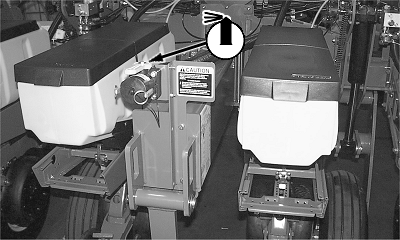

A53430-UN-02DEC03

Quick-Fill Valve
