Install Proper Drawbar Clevis (Drawbar Hitch Only)

1. IMPORTANT: If tractor has Category (Cat) IV drawbar, it must be used with a Category IV clevis on implement. If tractor has Category V DC drawbar, it must be used with a Category V DC clevis on implement.

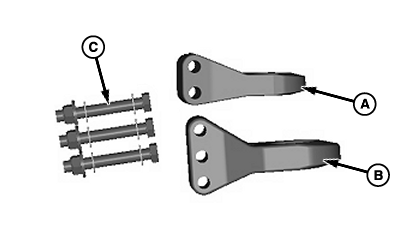

   A59628-UN-21MAR07

   A - Category IV Clevis

   B - Category V Clevis

   C - Clevis Mounting Hardware

   Determine tractor drawbar category. Corresponding clevis (A or B) must be installed on implement. See your John Deere Dealer for additional clevis, if needed.

---




2. NOTE: Shim washers (B) must be used to remove excess play between clevis and mounting plates.

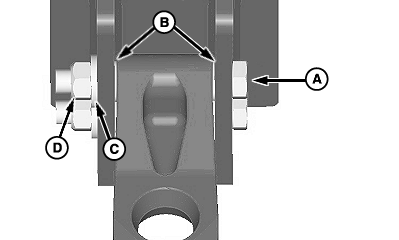

   A59629-UN-21MAR07

   Category IV Clevis Shown

   A - Cap Screw (2 used Cat IV) (3 used Cat V)

   B - Shim Washers (as required)

   C - Flat Washer (2 used Cat IV) (3 used Cat V)

   D - Hex Nut (2 used Cat IV) (3 used Cat V)

   Install correct drawbar clevis using cap screw (A), shim washers (B), flat washer (C) and hex nut (D).

---




3. Tighten cap screws and nuts to specification.

   Item	Measurement	Specification
   Clevis Mounting Cap Screws and Nuts	Torque	597 N·m (440 lb-ft)

4. Perform LEVEL THE MACHINE procedure to check implement hitch height.
