Adjust Marker Disk

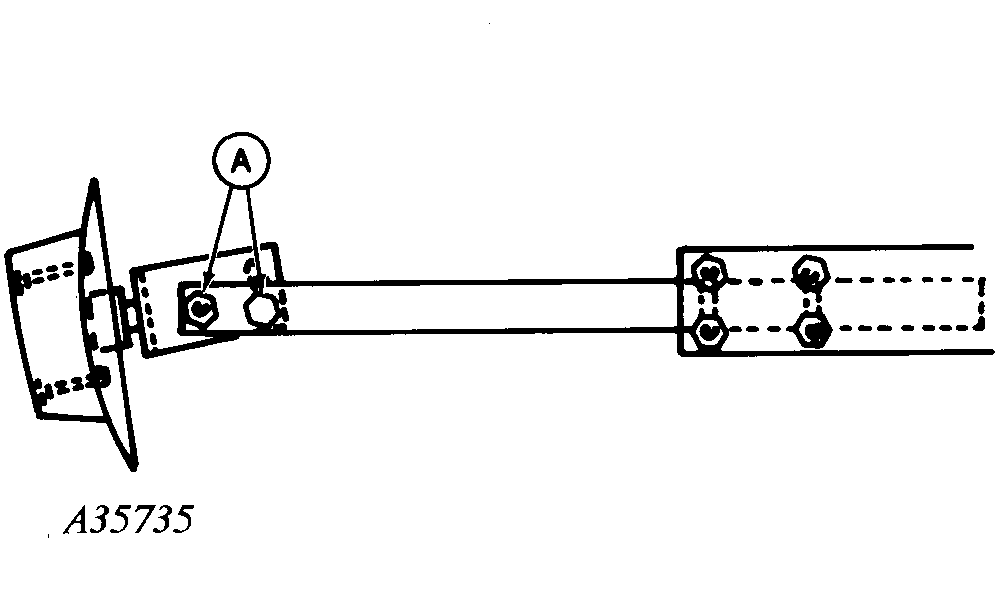

A35735-UN-06SEP94
A - Nut
The marker disk creates a furrow in the soil. This adjustment changes the size of furrow.Loosen nuts on cap screws (A), adjust disk angle and tighten nuts to specification.
| Item | Measurement | Specification |
| Cap Screw | Torque | 240 N˙m (175 lb.-ft.) |
OUO6074,0000813-19-20090521 |
