Setting CCS Row Unit Fan Switch

A53434
A53434-UN-08JAN04

A53433
A53433-UN-02DEC03

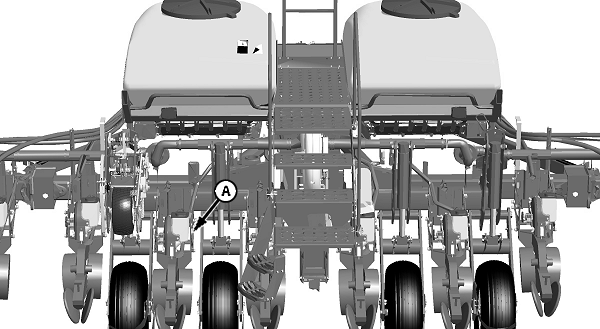

A - Row Unit Switch

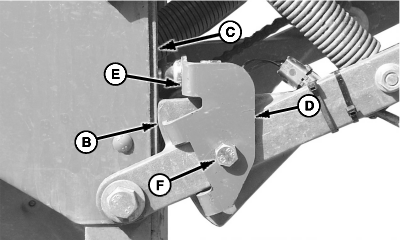

B - Stop

C - Frame

D - Bracket

E - Flat Surface

F - Cap Screw

The CCS row unit switch (A) turns the CCS fan on and off as machine is raised and lowered.

  1. Raise machine so lower parallel arm stop (B) touches planting unit frame (C).

  2. Rotate sensor bracket (D) until flat surface (E) is 20 mm (3/4 in.) from planting unit frame.

  3. Tighten cap screw (F).

  4. IMPORTANT: Avoid machine damage. Agitator will continue to run as long as tractor power is provided, if switch is not adjusted to deactivate when frame is raised.

    NOTE: Tractor electrical power must be supplied when adjusting.

    Observe agitator on CCS tank and adjust switch so agitator will shut off when frame obtains this fully raised position. This adjustment also ensures the CCS fan and agitator will engage the moment this row unit contacts the ground when lowered.
