Low Pressure Case Drain Connection
IMPORTANT: Avoid damage to fan motors, equip tractor with a low-pressure drain connection less than 172 kPa (1.72 bar) (25 psi). See Case Drain Connection Kits table.
IMPORTANT: Use the connection kits listed in table on John Deere tractors. If low-pressure drain connection kit is already installed, ensure it matches what is listed on table.

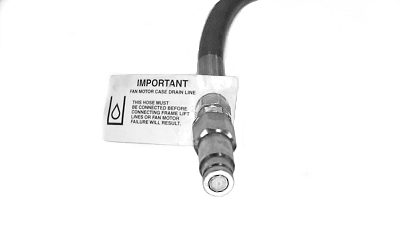

A53392-UN-25NOV03
Flush Face Case Drain Hose Tip
Order one of the following kits for a John Deere tractor. For other tractors, see tractor dealer for a suitable connection kit.NOTE: John Deere Connection Kits include Installation Instructions.
Case Drain Connection Kits | |
|---|---|
Tractor Model | Kit Number |
6000 and 10 Series 7420 and 7520 Series with serial numbers (- 016498) | BA30216 |
6020, 7220, 7320, 7420, 7520 Series | BA30217 |
7200, 7400, 7600, 7700, 7800 and 10 Series | BA30218 |
7720, 7820 and 7920 Series | BA30221 |
7030 Series | RE211441 |
8000, 8000T, 8010, 8010T, 8020, 8020T and 8030T Series | BA30219 |
8030 Wheel Tractors, 8R and 8RT Series Tractors | RE222721 |
9000, 9000T, 9010, 9010T, 9020, 9020T, 9030, 9030T Series | BA30220 |
OUO6074,0000968-19-20090608 |
