Operating Tank Lids

CAUTION: Do not open lids when CCS blower is running. Lids and harmful chemicals may be blown into face and seed lines will plug.

A53374
A53374-UN-20NOV03

A53375
A53375-UN-20NOV03

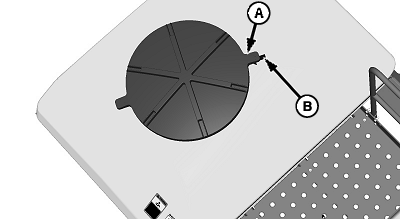

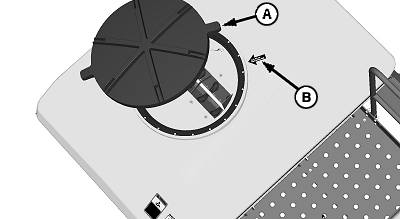

A - Handle

B - Arrow

To open, turn lid counterclockwise. To close lid, line up handle (A) with arrow (B) and turn clockwise.

OUO6074,00009BC-19-20040217
