Install and Remove Non-Standard Seed Tubes

1.
   A53216-UN-27OCT03


   A53298-UN-03NOV03


   A53218-UN-27OCT03


   A54328-UN-12MAY04

   A - Seed Tube

   B - Hook

   C - Pin

   D - Tabs

   E - Front and Rear

   Connect monitor harness to sensor harness.

---




2. NOTE: Place harness connector inside planting unit at same time as seed tube.

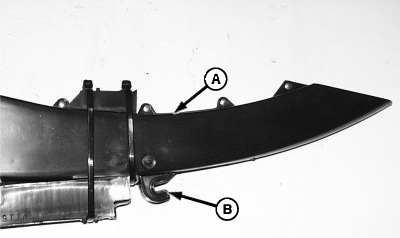

   Insert seed tube (A) into planting unit so the hook (B) locks on alignment pin (C).

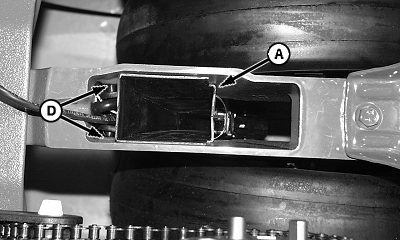

3. Position seed tube so tabs (D) lock into holes.

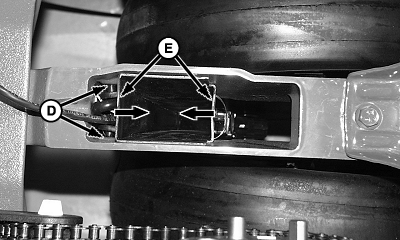

4. To remove seed tube, squeeze front and rear (E) of tube with fingers until tabs (D) release from casting and pull upward.
