Adjust 24 Row Marker Cable

1. IMPORTANT: Marker disk and marker length should be adjusted before cable length is set.


   A52778-UN-01OCT03


   A52779-UN-01OCT03

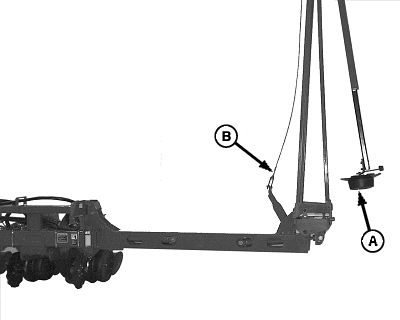

   A - Disk

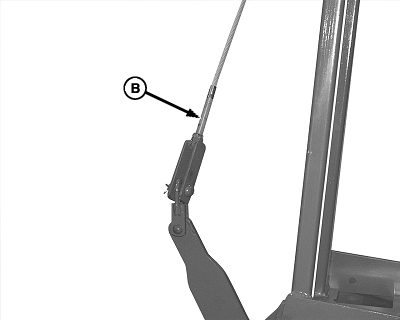

   B - Threaded Rod

   Lower markers and watch to see if disk (A) contacts the ground during swingout.

   Disk should slightly clear ground. If cable is too short and disk is far above the ground during swingout, float range will be affected.

---




2. If disk contacts ground, adjust cable by shortening threaded rod (B).

3. If disk is too high off ground, adjust cable by lengthening threaded rod.
