Set John Blue™ Fixed And Variable Rate Pump Drive Range

IMPORTANT: Avoid pump damage. Remove drive chain from piston pump when fertilizer system is not in use.

A48976-UN-01APR02

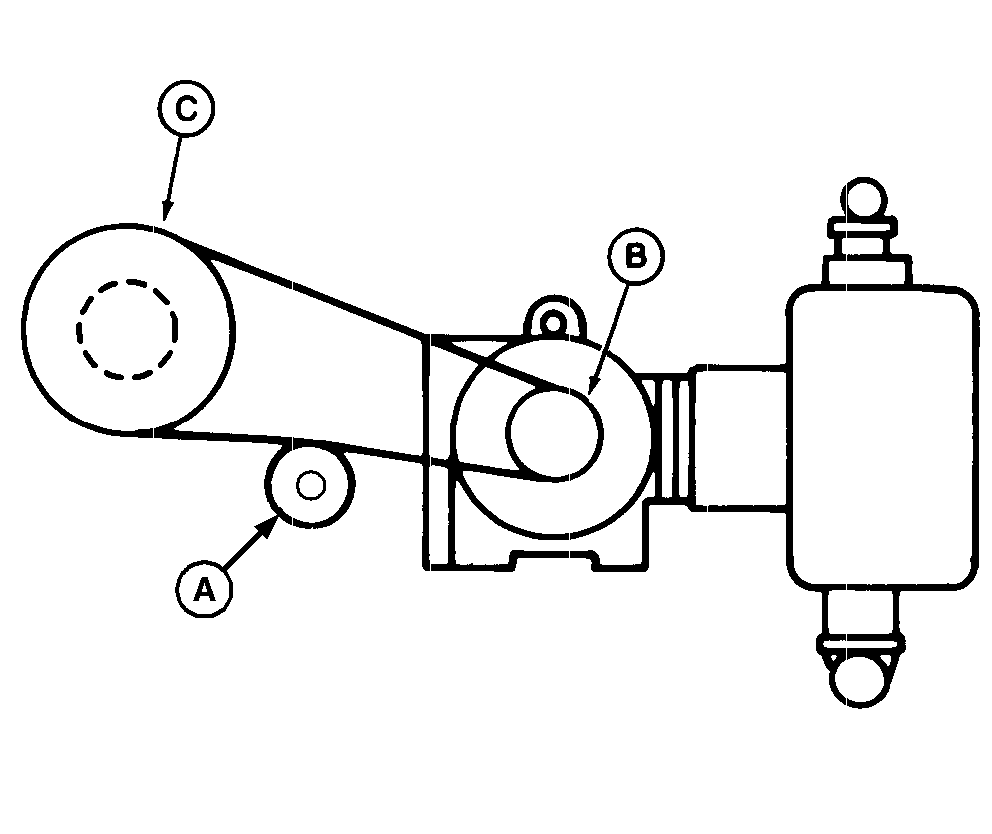

High Drive Range

A - Tensioner

B - 16-Tooth Sprocket

C - 35-Tooth Sprocket

Release tension on chain by pulling back on tensioner (A). Install chain on 16-tooth pump sprocket (B) and on 35-tooth drive sprocket (C) then release tensioner.

A48977-UN-01APR02

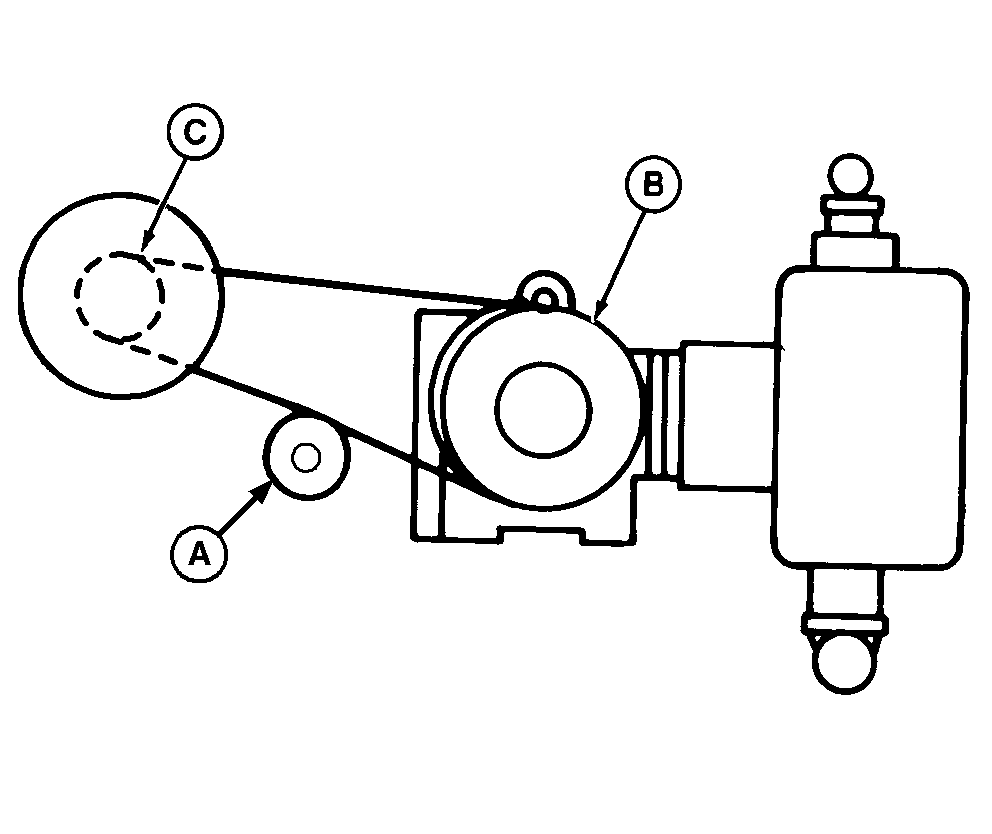

Low Drive Range

A - Tensioner

B - 35-Tooth Sprocket

C - 16-Tooth Sprocket

Release tension on chain by pulling back on tensioner (A). Install chain on 35-tooth pump sprocket (B) and on 16-tooth drive sprocket (C) then release tensioner.
