Tightening Meter Latch

A57639
A57639-UN-10MAR06

A57640
A57640-UN-10MAR06

A - Latch

B - Latch Hook

C - Nut

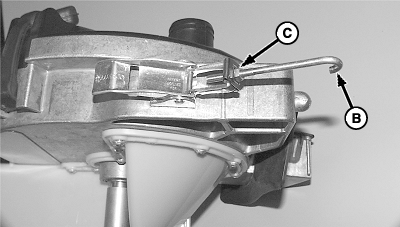

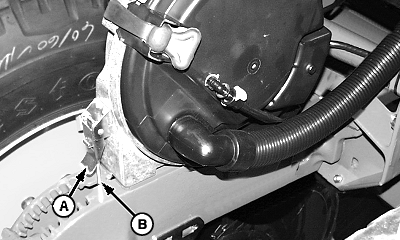

Meter latch (A) should close firmly into locked position when latch hook (B) is seated through notch and hole in row unit. Meter should fit securely on row unit. If latch or meter is out of adjustment, proceed as follows;

  1. Release latch and hook.

  2. Loosen nut (C).

  3. Rotate hook one full revolution and tighten nut. Hook should face meter alignment pin when tight.

  4. Install meter and check for proper adjustment. Repeat as necessary.
