Install and Remove Standard Flush Face Seed Tubes

  1. A59900
    A59900-UN-02APR07

    A53298
    A53298-UN-03NOV03

    A59901
    A59901-UN-02APR07

    A - Seed Tube

    B - Hook

    C - Pin

    D - Tabs

    Connect monitor harness to sensor harness.


  2. NOTE: Place harness connector inside planting unit at same time as seed tube.

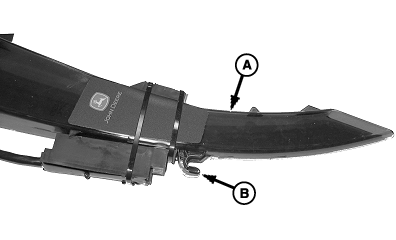

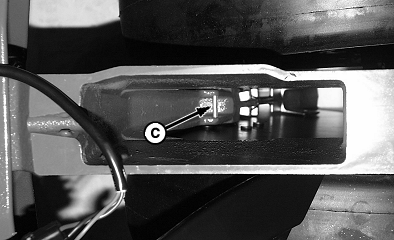

    Insert seed tube (A) into planting unit so the hook (B) locks on alignment pin (C).

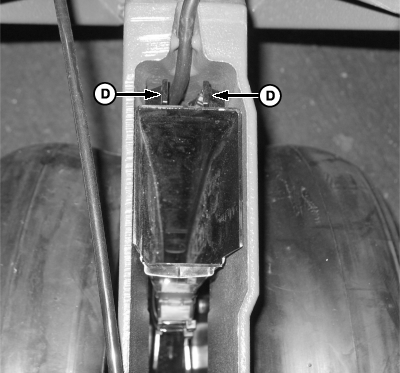

  3. Position seed tube so tabs (D) lock into holes.

  4. To remove seed tube, squeeze tabs with fingers until they release from casting. Pull upward.

OUO6074,0000FE4-19-20071113
