Low Pressure Distribution
IMPORTANT: Avoid pump damage. Remove drive chain from piston pump when fertilizer system is not in use.
A60512-UN-25JUL07

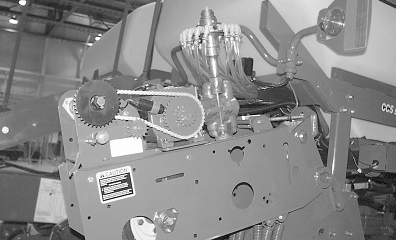

12 and 16 Row Machine
A60513-UN-25JUL07

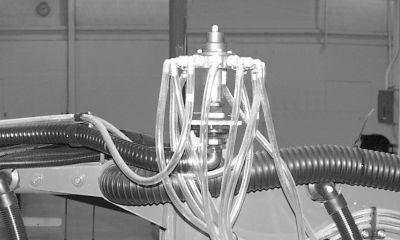

24 Row Machine
A53258-UN-10DEC03

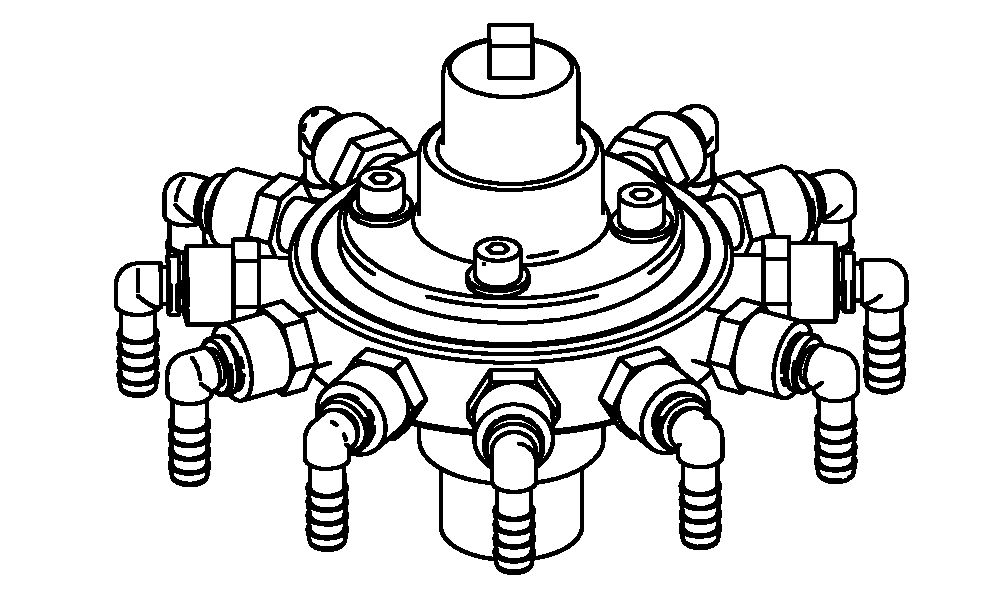

Low Pressure Flow Divider
A60514-UN-30JUL07
Single Disk Frame Mounted Opener
A60515-UN-30JUL07

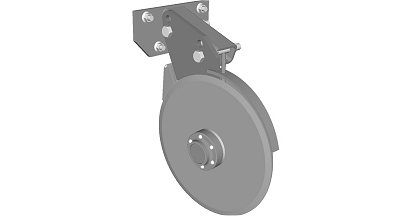

Double Disk Unit Mounted Opener
The low-pressure system uses a flow divider to evenly distribute product at various application rates. The 12 and 16 row machines have one flow divider on top of pump. The 24 row machine has two flow dividers on the wings. The low-pressure system is used with the frame mounted openers and double disk unit mounted openers.Low-pressure fertilizer systems do not utilize any orifices or nozzles at the openers. The pump setting is the only adjustment when changing rates. To set application rate, refer to the rate chart and adjust the piston pump to the corresponding setting. There are no orifices in a low-pressure system, no pressure gauge is needed, and plugging is far less likely to occur. Monitoring rows for proper distribution is limited to observing fertilizer move through each tube.
Priming the fertilizer system is critical to obtain best performance, especially at low flow rates. (See PRIME AND INITIAL STARTUP OF PUMP in this section.) Check hose routing to ensure there are no extreme high or low variations in path of hose. These extreme variations have the potential to trap air which causes variation in output. Eliminate kinks, pinches, or sharp bends in the fertilizer hoses. Any restriction reduces fertilizer flow to that opener.
