Determine Tractor Drawbar and Implement Clevis Compatibility
IMPORTANT: Avoid machine damage. Match tractor drawbar and implement clevis. Refer to tractor operators manual for specific drawbar information.
Do not exceed static vertical load capacity of tractor drawbar. See Specifications section for vertical load and see tractor manual for drawbar limits and heavy duty supports.
A60572-UN-08AUG07
A60573-UN-08AUG07

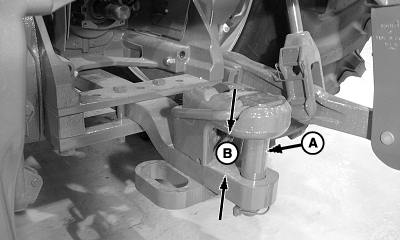

A - Drawbar Pin
B - Drawbar Opening

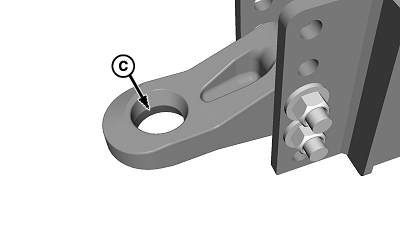

C - Slot
Match tractor drawbar and implement clevis. The only exception is a category IV clevis used with a category III drawbar that has a 90 mm (3.54 in.) opening. Never exceed vertical load limits.Drawbar and Clevis Compatibility | |||||
Tractor Drawbar | Implement Clevis | ||||
Drawbar and Clevis Category | Drawbar Pin (A) Diameter | Drawbar Opening (B) | Slot (C) Length | Slot (C) Width (Minimum) | Clevis Thickness |
III | 38 mm (1.50 in.) | 70— 90 mm (2.75—3.54 in.) | 41—66 mm (1.61—2.60 in.) | 41 mm (1.61 in.) | 48 mm (1.89 in.) |
IV | 51 mm (2.00 in.) | 90 mm (3.54 in.) | 55—70 mm (2.17—2.75 in.) | 55 mm (2.17 in.) | 50 mm (1.97 in.) |
V | 70 mm (2.75 in.) | 100 mm (3.94 in.) | 73—85 mm (2.87—3.35 in.) | 73 mm (2.87 in.) | 60 mm (2.36 in.) |
