Attach Drawbar Hitch Machine to Tractor

CAUTION: See Transport Safely, Observe Maximum Transport Speed, Use a Safety Chain, and Tow Loads Safely information in Safety section before machine transport.

  1. NOTE: It can be necessary to connect hydraulic hoses and move hitch into position.

    Back tractor to hitch.

  2. IMPORTANT:

    A53393
    A53393-UN-25NOV03

    Flush Face Case Drain Tip

    A53855
    A53855-UN-19FEB04

    8000 Series Tractor Shown

    A - Case Drain Hose

    B - Low-Pressure Drain Coupler

    Fan motor case drain hose must be attached to low-pressure drain connection before inlet and return hoses are connected. Case drain must have LESS THAN 172 kPa (1.72 bar) (25 psi) or fan motor damage occurs.

    IMPORTANT: Install a Low-Pressure Drain Line Kit when towing tractor is not equipped.

    IMPORTANT: Do not use other ports at the rear of the tractor which are similar in appearance and size to low-pressure drain port. Due to high backpressure (over 172 kPa 1.72 bar] [25 psi]), drain connection to these ports result in fan motor damage.

    Attach case drain hose (A) to tractor low-pressure drain coupler (B).



  3. IMPORTANT: Check tractor hydraulic oil level after filling cylinders with oil for the first time.

    IMPORTANT: It is important to rephase hydraulic lift system before operating any other functions.

    NOTE: When machine is equipped with drawbar hitch and automatic markers, markers and hitch use the same hoses.

    A47128
    A47128-UN-05MAR01

    8000 Series Tractor Shown

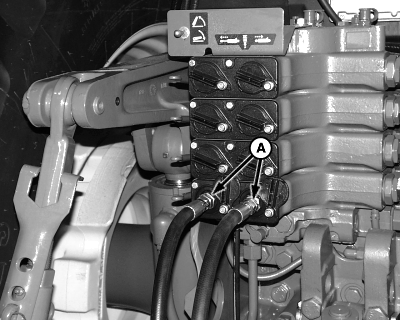

    A - Drawbar Hitch Hoses

    Attach drawbar hitch hoses (A) to tractor.



  4. If necessary, raise or lower hitch to align with tractor drawbar.

    To raise or lower drawbar hitch, proceed as follows:

    1. Place DRAWBAR-HITCH control console switch in “Hitch” position.

    2. Activate marker SCV to raise or lower drawbar hitch.

    3. When hitch is in proper position, place MARKER-HITCH switch in “Marker” position.

  5. A52383
    A52383-UN-02JUL03

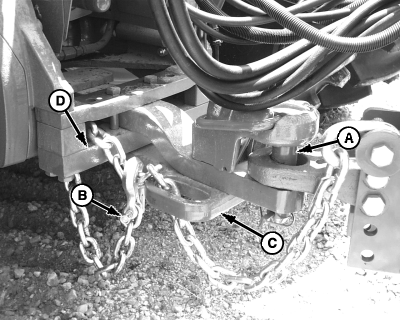

    8000 Series Tractor Chain Routing

    A60201
    A60201-UN-07JUN07

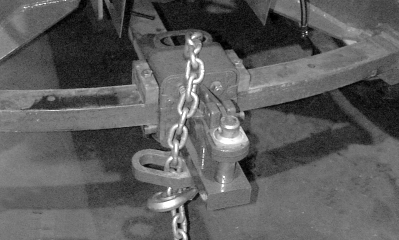

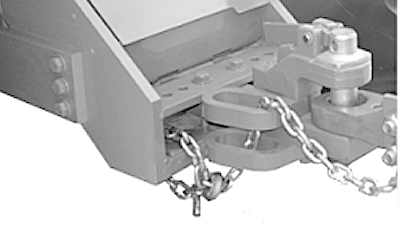

    9000 Series Tractor Chain Routing

    A61819
    A61819-UN-08JAN08

    9000T Series Tractor Chain Routing

    A52496
    A52496-UN-08JAN08

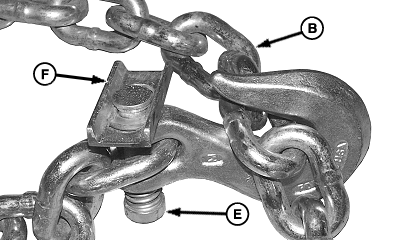

    Safety Lock Open

    A52497
    A52497-UN-08JAN08

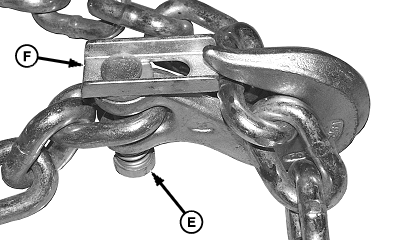

    Safety Lock Closed

    A - Drawbar Pin

    B - Safety Chain

    C - Loop

    D - Support

    E - Spring Latch

    F - Safety Lock

    Install drawbar pin (A) and secure.



  6. Install safety chain (B) through loop (C) and drawbar support (D).

  7. Press spring latch (E) and rotate safety lock (F) open.

  8. Attach hook to chain between drawbar support (D) and loop (C).

  9. Press spring latch (E) and rotate safety lock (F) into closed position.

  10. A62725
    A62725-UN-25JUN08

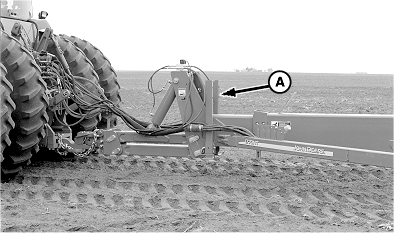

    A - Hitch Stands

    Raise hitch to remove weight from hitch stands (A).



  11. Raise and secure hitch stands as shown.
