Planting Seed Plots with CCS Systems

NOTE: Due to the small quantity of seed being planted, removing the CCS system from operation and fill row units individually.

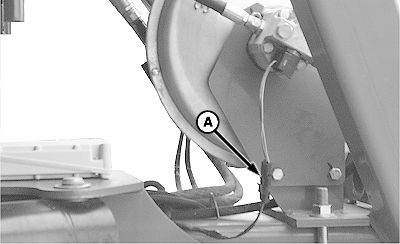

A54350
A54350-UN-18MAY04

A - CCS Fan Harness Connector

Disconnect harness connector (A) from CCS fan.

Fill row units individually instead of using CCS tanks.

OUO6435,0001BB3-19-20090515
