Inspecting Vacuum Meter Units

NOTE: If using seed treatments, remove any buildup that may occur in bottom of hopper.

A51186
A51186-UN-19NOV02

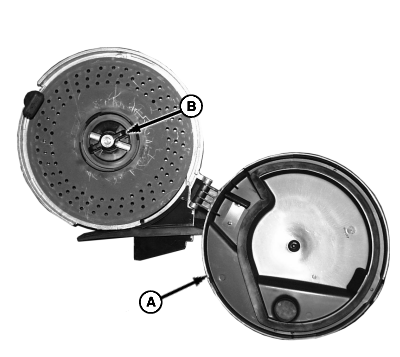

Vacuum Meter

A - Door

B - Meter Hub

To inspect meter, lay hopper on side and open door (A) to remove seed disk. Turn meter hub (B) by hand to determine if mechanism is free of dirt, chaff or other foreign material. Inspect brush for gaps, hub seal for cracks and vacuum seal for cracks and wear areas. If replacement is necessary, see Service and Adjustments section.

OUO6435,0001DBA-19-20090515
