Adjust 24 Row Contact Link Air Bag Pressure
CAUTION: Avoid serious injury from exploding parts. Lower machine into plant position before adjusting air bag pressure.

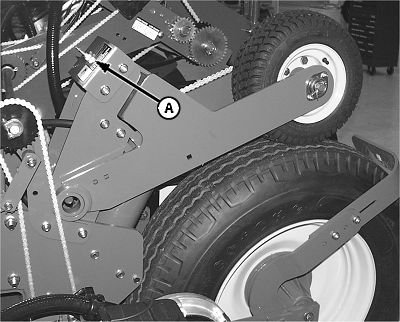

A53582-UN-07JAN04
A - Air Bag
Lower machine into plant position and inflate contact link air bag (A) to pressure specification.| Item | Measurement | Specification |
| Air Bag | Pressure | 758 kPa (7.58 bar) (110 psi) |
For best performance, ensure that the frame tire and the contact drive tire are inflated to the proper pressure.
OUO6435,0001EDB-19-20090522 |
