Adjust 24 Row Contact Link

1. NOTE: For best results, adjust machine while parked on field soil conditions.


   A53583-UN-07JAN04


   A53584-UN-07JAN04

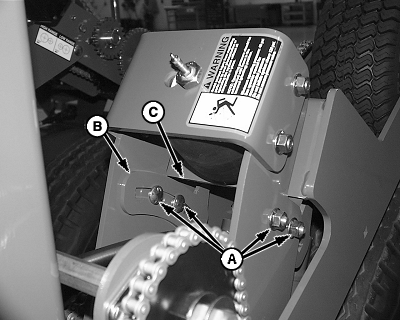

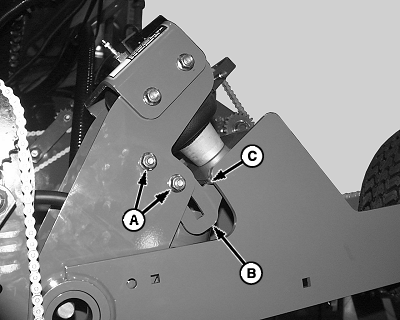

   A - Carriage Bolts

   B - Adjustment Brackets

   C - Stop Plate

   Lower machine on level ground.

---




2. CAUTION: Avoid crushing injury. Do not loosen carriage bolts (A) unless tires are in contact with each other. Machine must be in lowered position.

   Loosen carriage bolts (A).

3. Raise machine until planting units are at the height which seeding begins and ends. Initially adjust starting point to when the opener blades are barely in contact with the ground.

4. Position adjustment brackets (B) so they are firmly in contact with stop plate (C).

5. Tighten bolts (A) to specification.

   Item	Measurement	Specification
   Carriage Bolt	Torque	142 N·m (105 lb.-ft.)

6. Field test and adjust if necessary.
