Adjust Tire Scraper

1. IMPORTANT: Load and tire air pressure effect distance between tire and scraper. Tire diameter can change as tire warms up during transport. Do not set scraper closer than the specification.

   IMPORTANT: To prevent damage, tire scraper must be adjusted anytime frame height is changed.

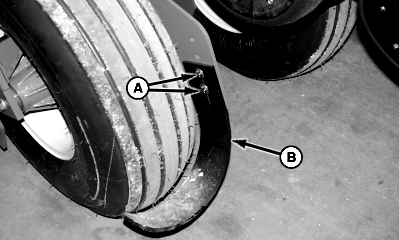

   A49944-UN-21AUG02

   12 and 16 Row

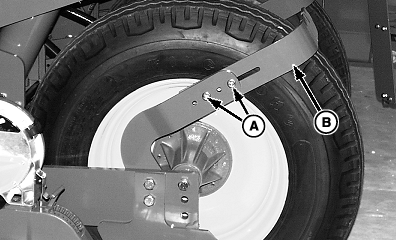

   A53356-UN-01DEC03

   24 Row

   A - Cap Screws and Nuts

   B - Tire Scraper

   Adjust tire to correct air pressure.

---




2. Loosen cap screws and nuts (A).

3. Adjust clearance between tire scraper (B) and tire to specification.

   Item	Measurement	Specification
   Scraper to Tire (Cold)	Clearance	6—10 mm (1/4—3/8 in.)
