12 Row Vacuum Manifold Tube Orifice Placement
A49013-UN-04APR02

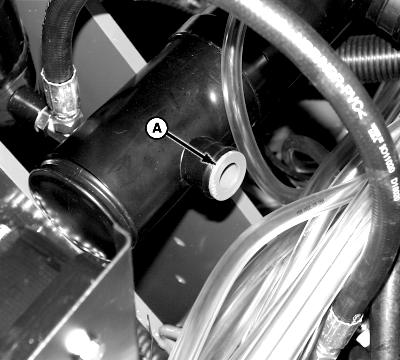

Vacuum Manifold Orifice
A - Orifice
Single Vacuum Machines Only:Orifices (A) are installed in the vacuum tube manifold on rows 5, 6, 7 and 8.
Orifice Placement | |
|---|---|
Row Numbers | Orifice Color |
5, 6, 7 and 8 | Yellow |
OUO6435,0001EF8-19-20090522 |
