24 Row Vacuum Manifold Tube Orifice Placement

A53591
A53591-UN-08JAN04

A53592
A53592-UN-08JAN04

A54143
A54143-UN-23MAR04

A - Hose

B - Orifice

C - Tab

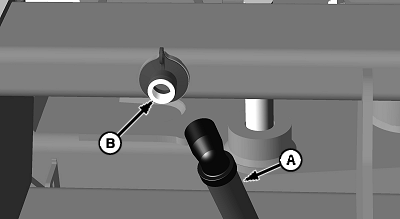

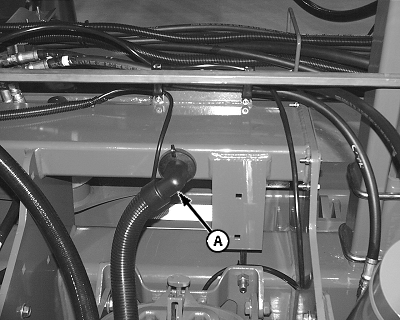

Remove vacuum hoses (A) from manifold tubes on rows 9, 10, 11, 12, 13, 14, 15 and 16. Yellow orifices (B) are installed in manifold fittings.

Orifice Placement

Row Numbers

Orifice Color

9 through 16

Yellow

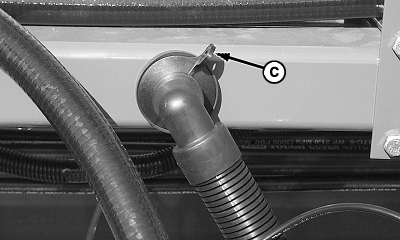

Tab (C) must be turned at a 45 degree angle when installed to hold coupler in frame.
