Replace 12 and 16 Row Marker Breakaway Bolt

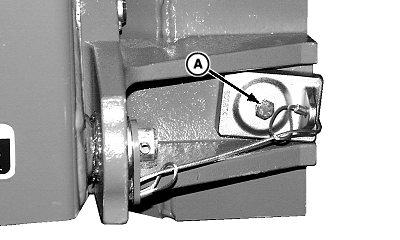

A53162-UN-23OCT03

A - Breakaway Bolt

The marker breakaway bolt (A) provides protection from machine damage if marker hits an obstacle.

To replace breakaway bolt, proceed as follows:

NOTE:

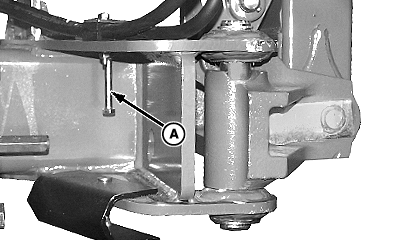

A53163-UN-23OCT03

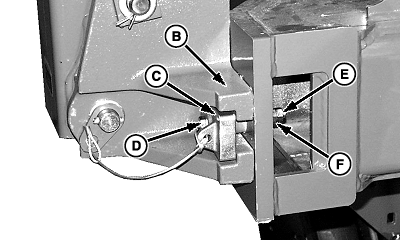

A53164-UN-23OCT03

A - Extra Shear Bolts

B - Marker Arm

C - Spacer

D - Breakaway Bolt

E - Nut

F - Jam Nut

Return marker arm (B) to operating position, install spacer (C) and insert breakaway bolt (D) through hole in machine frame.

Tighten breakaway bolt with nut (E) to specification and secure with jam nut (F).

Item	Measurement	Specification
Nut (E)	Torque	81 N·m (60 lb.-ft.)
