Replace 24 Row Marker Breakaway Bolt

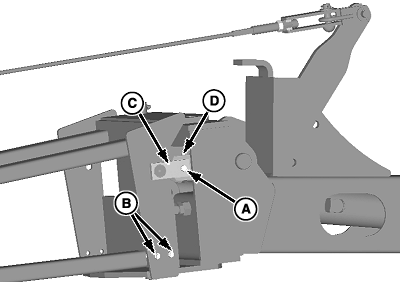

A53411-UN-02DEC03

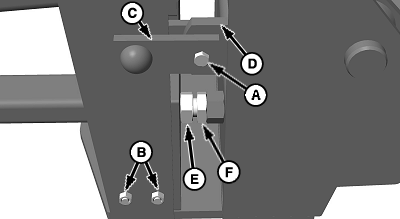

A53595-UN-08JAN04

A - Breakaway Bolt

B - Extra Shear Bolts

C - Bracket

D - Bracket

E - Bolt

F - Jam Nut

The marker breakaway bolt (A) provides protection from machine damage if the marker hits an obstacle.

To replace breakaway bolt, proceed as follows:

1. NOTE: Extra shear bolts (B) are located on marker frame.

   Return marker arm to operating position, align hole in bracket (C) with hole in bracket (D) and insert breakaway bolt (A). Install nut on breakaway bolt, but do not tighten at this time.

2. Adjust bolt (E) until all slack is removed from bracket (C).

3. Turn bolt (E) an additional one quarter turn and tighten jam nut (F).

4. Tighten breakaway bolt with nut to specification and secure with additional jam nut.

   Item	Measurement	Specification
   Breakaway Bolt and Nut	Torque	81 N·m (60 lb.-ft.)
