Adjust 12 and 16 Row Marker Alternating Switch

1. NOTE: Marker alternating switch is mounted behind the inner right-hand wing wheel lift cylinder.


   A48247-UN-07NOV01


   A48248-UN-07NOV01

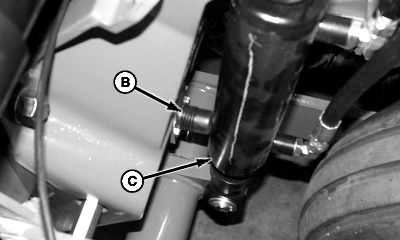

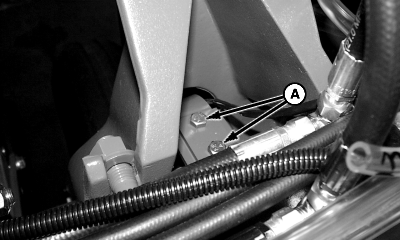

   Marker Alternating Switch

   A - Cap Screws

   B - Marker Alternating Switch

   C - Cylinder

   In plant position, raise machine to field raise position.

---




2. Loosen cap screws (A).

3. Slide marker alternating switch (B) toward cylinder (C) until switch clicks.

4. Tighten bolts (A).
