Adjust 24 Row Marker Winglet Switch

1.
   A53431-UN-04DEC03

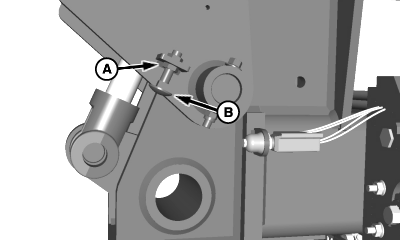

   A - Jam Nut (2 used)

   B - Round Head Bolt

   With planter winglet raised, loosen jam nuts (A) and turn round head bolt (B) in, toward marker wing, five complete revolutions. This allows winglet to lower before round head bolt contacts switch.

---




2. Lower winglet completely.

3.
   A53432-UN-04DEC03

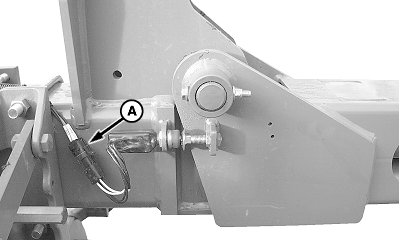

   A - Connector

   Disconnect connector (A).

---




4.
   N54674-UN-23AUG00

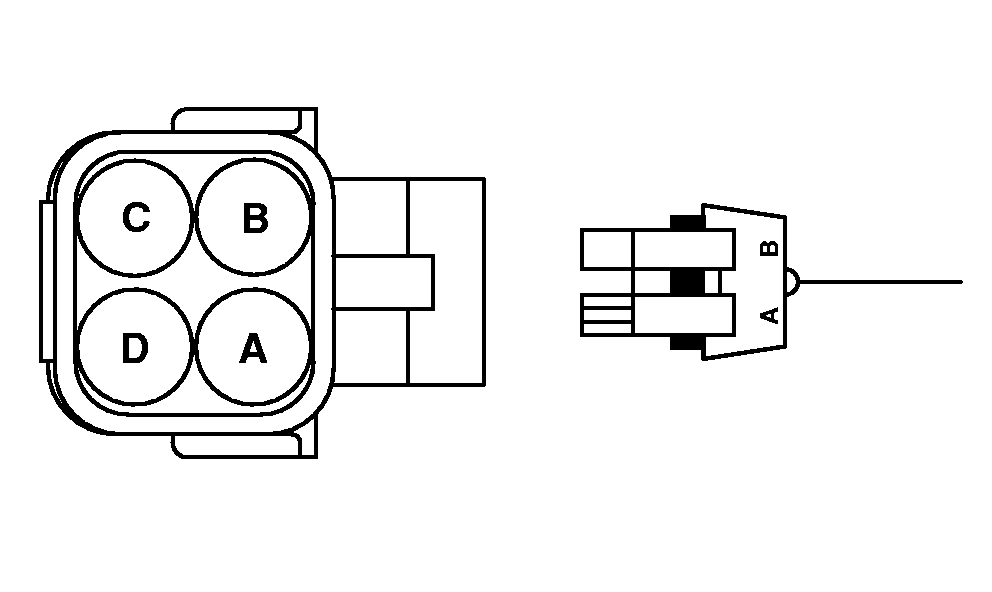

   Connect ohmmeter to pins (A and D) or pins (B and C).

---




5. Turn round head bolt towards switch until there is a change in resistance, open or closed circuit.

6. Turn round head bolt in an additional 1/2 turn and tighten jam nuts.
