Tighten 24 Row Center Frame Trunnion Blocks

1.
   A54111-UN-22MAR04


   A54112-UN-22MAR04

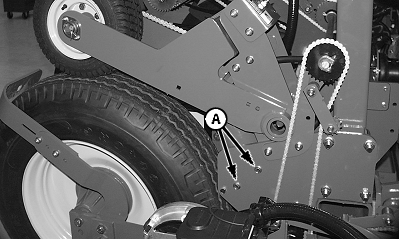

   A - Cap Screws

   Raise machine into field raised or road transport position.

---




2. Tighten trunnion cap screws (A) on both sides of each center frame lift cylinder to specification.

   Item	Measurement	Specification
   Trunnion Cap Screws	Torque	142 N·m (105 lb.-ft.)
