Clean 12 and 16 Row Wing Pivots

A47994
A47994-UN-17SEP01

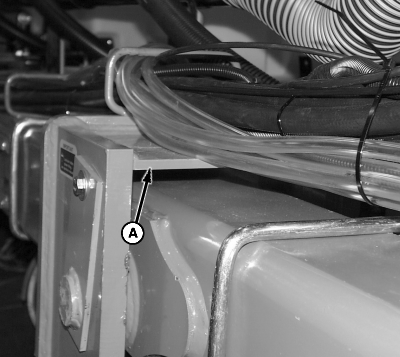

Top Side

A47995
A47995-UN-17SEP01

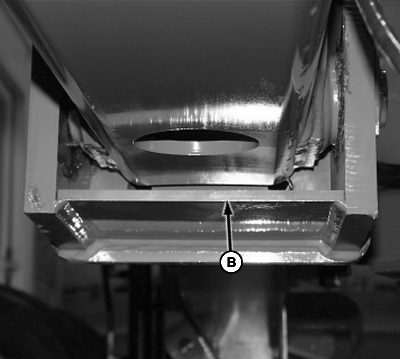

Bottom Side

A - Plate

B - Plate

Clean dirt and debris from under plate (A) and on top of plate (B). Verify both wing pivots are clean to prevent damage to the frame.

OUO6435,0001F03-19-20090526
