12 and 16 Row Marker Float Range

A35734-19-06SEP94

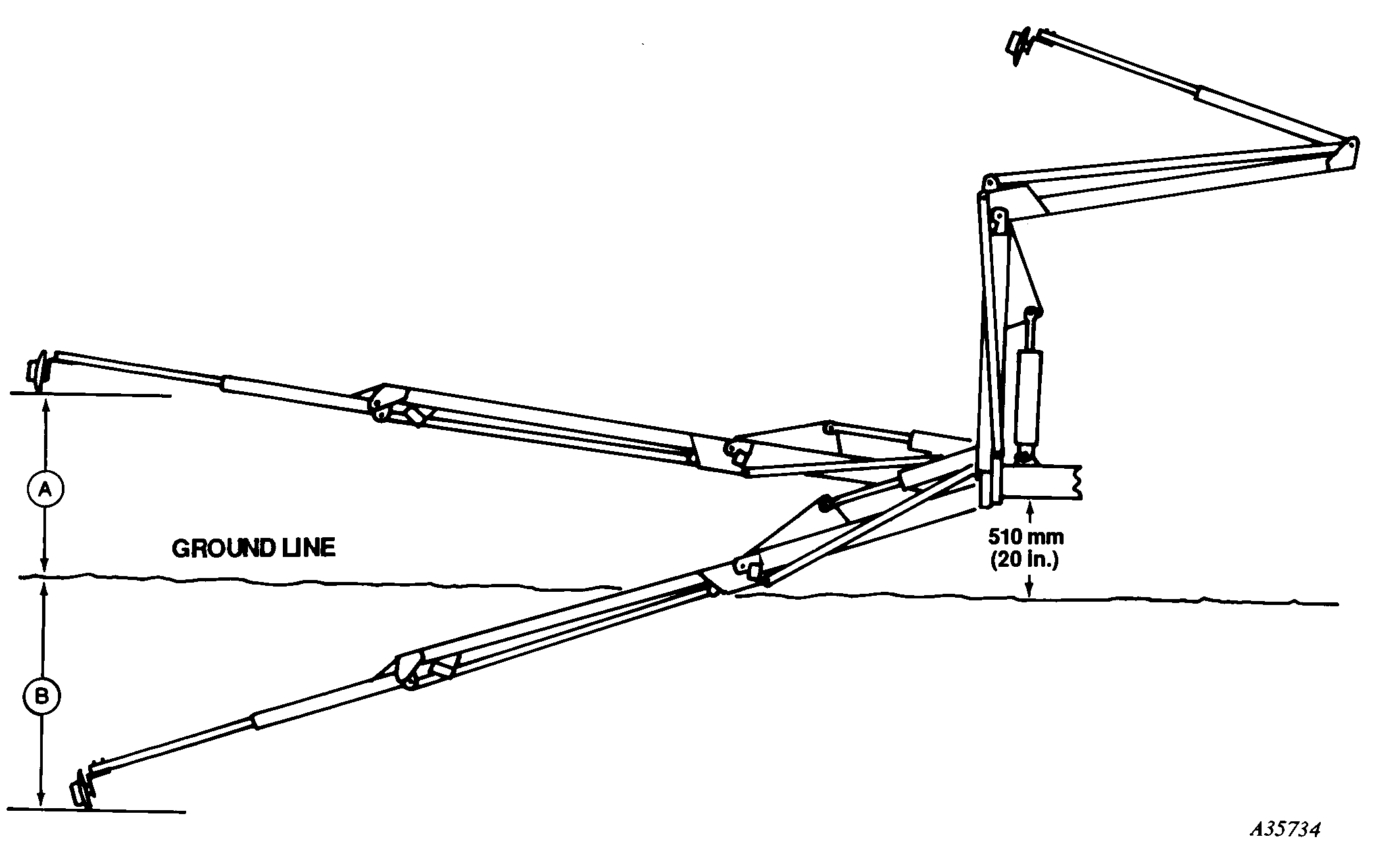

A - Dimension A

B - Dimension B

The marker has an approximate float range (see table) which must not be exceeded when planting near drainage ditches or hillsides.

Exceeding this float range can result in damage to the marker inner arm.

If this range must be exceeded, raise the marker by operating the marker SCV lever.

Machine	Row Spacing	Dimension “A”	Dimension “B”
12-Row	76 cm (30 in.)	1335 mm (52.5 in.)	1335 mm (52.5 in.)
16-Row	76 cm (30 in.)	1778 mm (70 in.)	1778 mm (70 in.)
