24 Row Solenoid Identification

A53486-UN-14JAN04

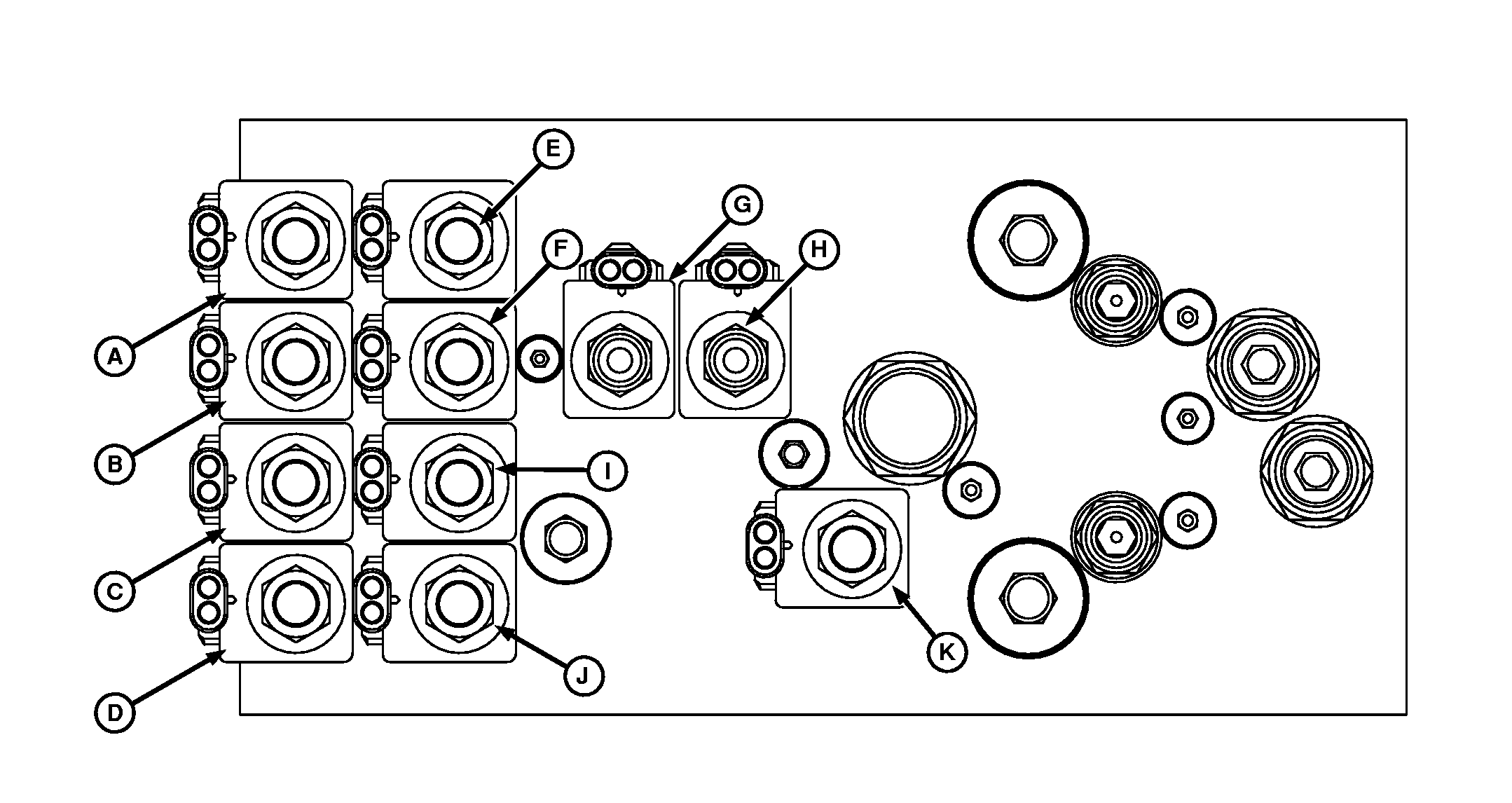

Center Solenoid and Valve Assembly

A - Y18

B - Y22

C - Y24

D - Y20

E - Y23

F - Y19

G - Y9

H - Y8

I - Y21

J - Y25

K - Y1

A53661-UN-14JAN04

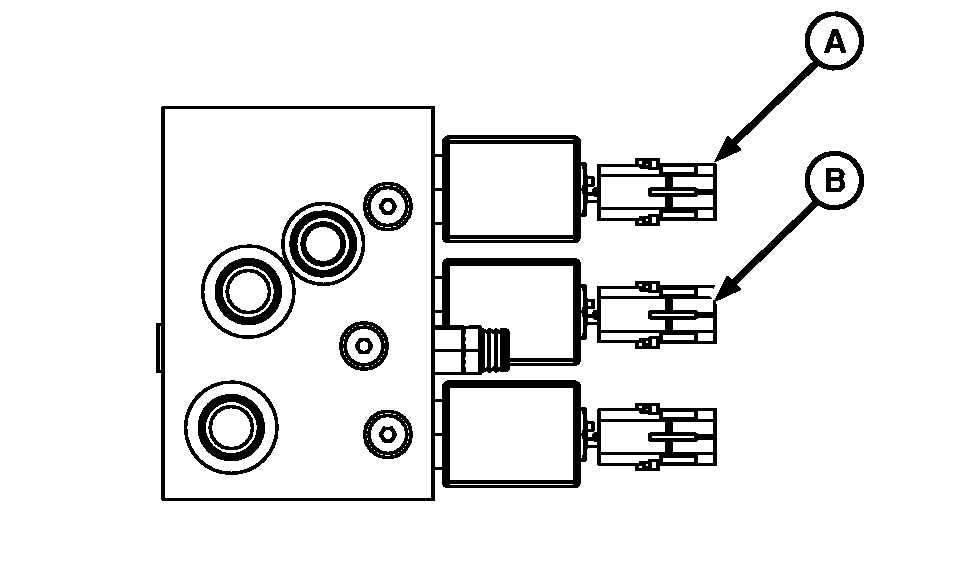

Left Winglet Valve Assembly

A - Y4L

B - Y3L

A53660-UN-14JAN04

Right Winglet Valve Assembly

A - Y4R

B - Y3R
