Install 24 Row Service Locks

CAUTION: Lower machine to ground before working on any hydraulic components or welding.

IMPORTANT: Service locks are not used as transport locks.

1.
   A49943-UN-21AUG02

   Main Frame Service Lock - Storage Position

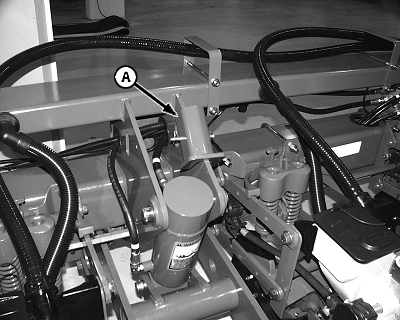

   A53594-UN-08JAN04

   Wing Wheel Service Lock - Storage Position

   A - Service Locks

   Remove service locks (A) from storage positions. Wing wheel locks are stored on top of wing wheel frame. Main frame locks are stored on the CCS ladder frame rails.

---




2. IMPORTANT: Avoid machine damage. Tab (A) on service lock must be on top side against cylinder.


   A53401-UN-01DEC03

   Main Frame Service Locks

   A - Tab

   Install service locks onto both outer main frame wheel cylinders and outer wing wheel cylinders. Install pin and spring pin to hold in place.

---




3.

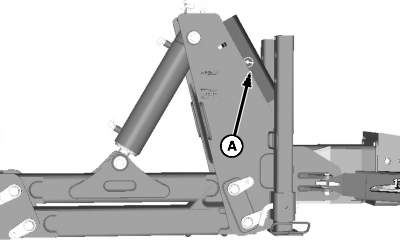

   A52402-UN-08JUL03

   Drawbar Service Lock Storage Location

   A - Service Lock

   When servicing machines with drawbar hitch, either lower drawbar completely or raise drawbar completely and install service lock (A).

---
