Weighting Front End 24 Row

A50871-UN-05NOV02

Refer to the following chart to calculate the implement code for your planter. Add the implement code values for the optional equipment your planter is equipped with to the implement code value for the base machine to determine the total implement code.

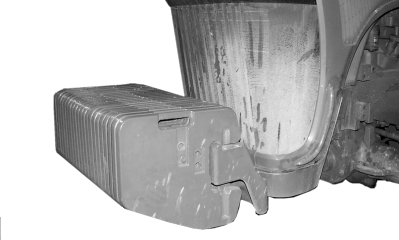

Install the proper amount of weight on the front of the tractor as recommended in your tractor operator’s manual.

	Implement Code
Base Machine	7000 and 8000 Series Tractors	55 Series Tractors	Hitch Weight1
Twenty-Four Row 76 cm (30 in.) Central Commodity System With PRO-SERIES™XP Row Units	455	435	4100 kg (9000 lb.)
Markers
Tri-Fold	52	50	450 kg (1000 lb.)
Less Markers	0	0	0
Wing Frame Assemblies
Four 11 x 22.5 Load Range F HI Flotation Tires	17	16	140 kg (300 lb.)
Row Unit Parallel Arms
Regular	0	0	0
Long	21	20	180 kg (400 lb.)
Liquid Tanks
Less Tank and Mounting Brackets	0	0	0
Insecticide Tank and Mounting Brackets	57	54	450 kg (1000 lb.)
Fertilizer Pump, Delivery System, and Openers
Less Pump, Delivery System, and Openers	0	0	0
Piston Pump, Flow Divider with Hoses and Frame Mounted Single Disk Fertilizer Openers	57	54	450 kg (1000 lb.)
Piston Pump, Flow Divider with Hoses, Less Openers	0	0	0
Piston Pump, Less Delivery System, Less Openers	0	0	0
Variable Rate Piston Pump, Flow Divider with Hoses and Frame Mounted Single Disk Openers	57	54	450 kg (1000 lb.)
Variable Rate Piston Pump, Flow Divider with Hoses, Less Openers	0	0	0
Variable Rate Piston Pump, Less Delivery System, Less Openers	0	0	0

See your John Deere dealer for proper front-end weighting.
