12 and 16 Row Shear Protection Points

IMPORTANT: All shear protection pins should be replaced annually.

Replace the shear pin ONLY with shear pin of the same size. Do not replace with other type pins. Replacement cotter shear pins (A) are located on the inside rear of seed transmission.

NOTE: If drill shaft binds due to misalignment, loosen bolts on drill shaft bearings on planting units. Make certain shaft turns freely, then tighten bolts.

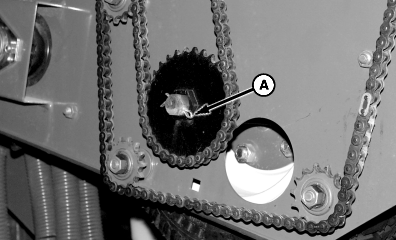

A48979-UN-28MAR02

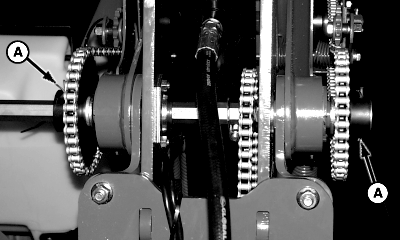

Transmission Drive Tire (If Equipped)

A47945-UN-27SEP01

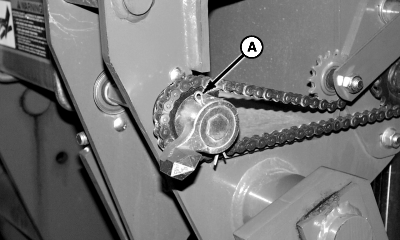

Right-Hand and Left-Hand Drives (If Equipped)

A48980-UN-28MAR02

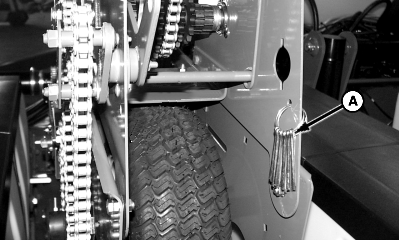

Drive Couplers

A48981-UN-28MAR02

A - Shear Pins

The shear pins (A), shear when an excessive load occurs on drillshafts. Meter handle shears when an excessive load occurs in meter.

Infrequent or improper lubrication causes “binding” of moving parts within the machine. This “binding” can cause the shear pins to shear, thus preventing breakage of machine parts. Other common causes of binding include compaction of field residue on row unit drives, jammed or misaligned seed meters.

If either the left-hand and right-hand drive shear pin shears, turn the drill shaft by hand to locate where the “binding” is occurring. When the drill shaft can be turned freely by hand, replace the cotter shear pin.

Replacement cotter pins (A) and meter handle are located on mechanical transmission or on left-hand variable rate drive motor.

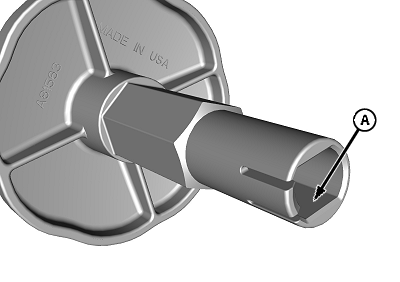

A57648-UN-13MAR06

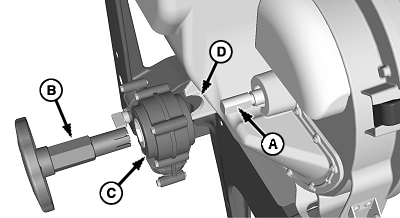

A57649-UN-13MAR06

A57650-UN-13MAR06

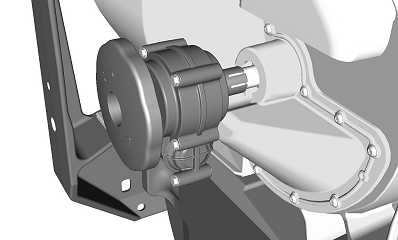

Assembled

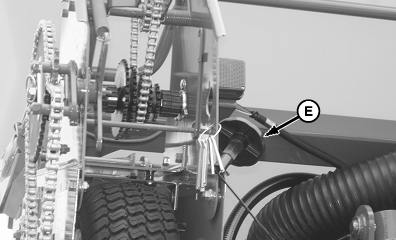

A57671-UN-20MAR06

Location with Mechanical Transmission

A57672-UN-20MAR06

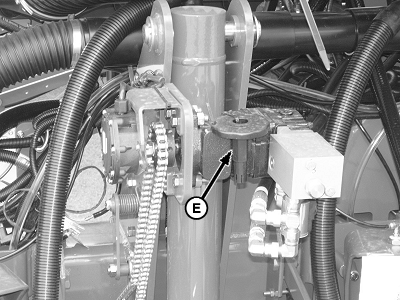

Location with Variable Rate Drive

A - Flat Surfaces, Aligned

B - New Handle

C - Gearbox

D - Cutout

E - Pro Meter Replacement Handle
