Removing From Storage

A53394
A53394-UN-22DEC03

12/16 Row Service Locks

A53401
A53401-UN-01DEC03

24 Row Service Locks

A - Service Locks

If machine is in the folded transport position and service locks were installed, raise machine up off of locks.

Remove service locks (A) from both outer main frame wheel cylinders.

A49947
A49947-UN-21AUG02

12/16 Row - Storage Position

A49943
A49943-UN-21AUG02

24 Row - Storage Position

A - Service Locks

Place main frame service locks (A) in the storage position. Locks are stored on the CCS ladder frame rails.

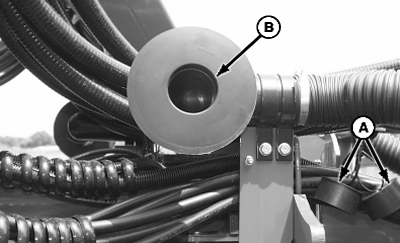

A49949
A49949-UN-21AUG02

A - Plugs

B - Manifold Bell

Remove all plugs (A) from vacuum manifold bells (B)

Before using machine after it has been stored, inspect seed hoppers for cleanliness to be certain seed will flow from hoppers freely.

Thoroughly inspect machine for loose parts and adjust as necessary.

IMPORTANT: High pressure washers can damage electrical components, bearings, hoses and/or hoppers if direct contact is applied. Use caution, if power washing machine.

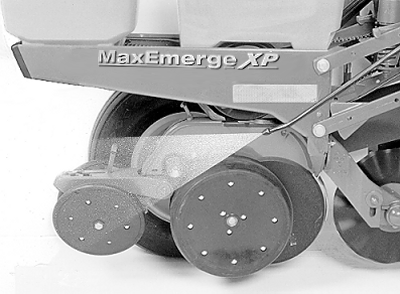

A54030
A54030-UN-08MAR04

Clean any dirt or grease that may have accumulated on moving parts, gears and chains before operating machine. This will prevent abrasive action that could cause excessive wear.

When roller chains remain unused for several days, moisture in the air will accumulate on chain, causing chain to rust. This can and will become serious enough in time to cause the chain joints to become stiff, restricting their normal free movement. While very difficult to detect, this stiffness can cause the chains to operate abnormally and disturb the smooth rotation of important meter components causing deterioration in performance.

IMPORTANT: Do not use chain lube or any other heavy petroleum base lubricant that may cause a buildup of dust or dirt in the sprocket or gear teeth.

If machine is not used for several days or if oil has been removed from chains while cleaning the machine, thoroughly lubricate chains with John Deere Multipurpose Spray Lube TY6350.

Adjust machine for planting conditions to be encountered.

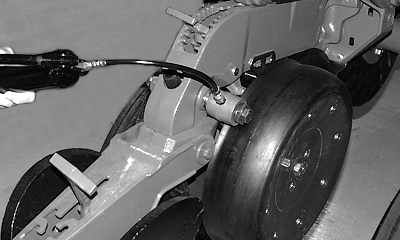

A53141
A53141-UN-04NOV03

Lubricate planting units as outlined in the Lubrication section.

OUO6435,0001F8E-19-20060202
