Align Disk Opener

IMPORTANT: Avoid crop injury. Inspect fertilizer opener depth and offset from seed furrow before operation.

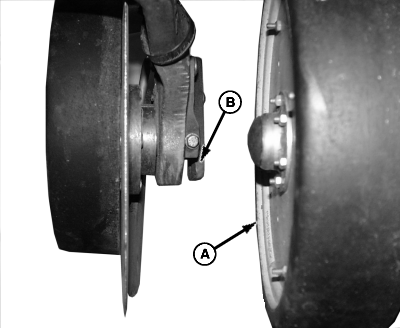

A49400-UN-12JUN02

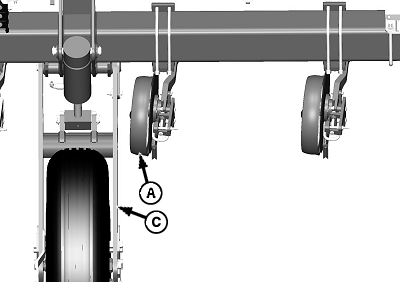

A58155-UN-07JUN06

A - Depth Gauge Wheel

B - Opener Casting

C - Wheel Module

IMPORTANT: Avoid machine damage. Perform duplicate adjustments to opener alignment on both sides of the machine. Use caution when folding the machine the first time after adjustments. Fold machine very slowly to ensure fertilizer openers do not contact anything.

IMPORTANT: Adjustment ranges vary according to opener location. See table below for recommended adjustment ranges.

Any fertilizer opener alignment change made on one side of the machine must be exactly duplicated on the opposite side of machine. This must be done to prevent openers from contacting each other when folding. Use caution when raising, lowering, and folding the machine for the first time after any adjustment to fertilizer opener alignment. Make sure depth gauge wheels (A) do not hit opener castings (B) on opposite side of machine when folded or contact wheel modules (C) throughout full range of motion during operation.

Fertilizer Opener Placement Guidelines
Machine Size	51 to 102 mm (2 to 4 in.) Of Adjustment From Seed Furrow	51 to 76 mm (2 to 3 in.) Of Adjustment From Seed Furrow
12 Row	Rows 1, 3, 4, 9, 10, and 12	Rows 2, 5, 6, 7, 8, and 11
16 Row	Rows 1, 4, 5, 6, 11, 12, 13, and 16	Rows 2, 3, 7, 8, 9, 10, 14, and 15
24 Row	Rows 1, 3, 5, 6, 7, 8, 9, 10, 15, 16, 17, 18, 19, 20, 22, and 24	Rows 2, 4, 11, 12, 13, 14, 21, and 23

1.

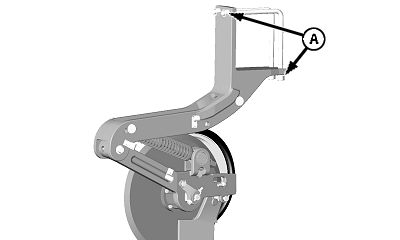

   A56366-UN-26MAY05

   A - L-Bolt Nuts

   To change alignment of fertilizer opener, loosen L-bolt nuts (A) and slide opener to right or left until opener disk is at desired location.

---




2. Snug L-bolt nuts (A) until opener is square with and touching the bottom of tubular frame. Tighten L-bolt nuts (A) to specification.

   Item	Measurement	Specification
   L-Bolt Nuts	Torque	175 N˙m (129 lb-ft)
