Adjusting Spout

1.
   A56368-UN-26MAY05


   A56369-UN-26MAY05

   A - Point

   B - Jam Nut and Cap Screw

   C - Cap Screw

   D - Upper and Lower Holes

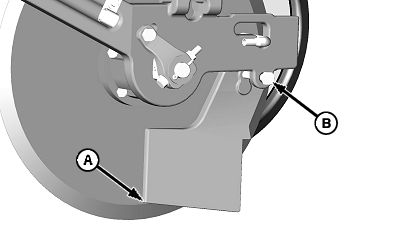

   Point (A) of scraper edge should be inside beveled edge of disk. As wear occurs, spout may need to be adjusted.

   Loosen jam nut and cap screw (B).

---




2. Remove cap screw (C).

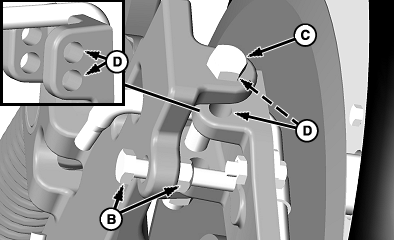

3. Install cap screw (C) in upper or lower holes (D) to adjust spout height.

4. IMPORTANT: Scraper edge should “drag” on opener disk at point (A).

   Adjust preload of scraper edge against opener blade by adjusting cap screw and jam nut (B).
