Safety Signs

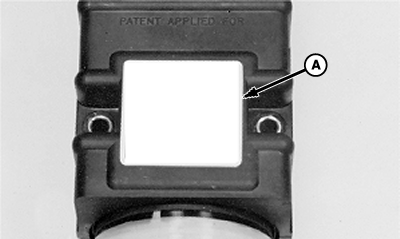

A68532-UN-02AUG10

External Radar (Optional)

A—Warning: To avoid possible eye damage from microwave signals emitted by this radar sensor, DO NOT look directly into sensor face.

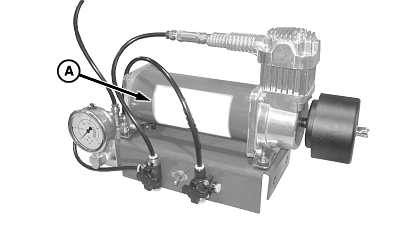

A68533-UN-02AUG10

Pneumatic Down Force Compressor

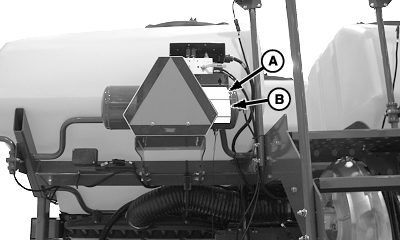

A67775-UN-17JUN10

Pneumatic Down Force Air Tank

A—Warning: Avoid serious injury from exploding parts due to over pressurization or operating the system without all components in place. Do not inflate single bag system above 827 kPa (8.27 bar) (120 PSI). Do not inflate dual bag system above 552 kPa (5.52 bar) (80 PSI). Do not remove pressure valve. Do not pressurize system unless all row unit components are in place.

B—Caution: Highly pressurized system. Protective eyewear should be worn while servicing. Before servicing relieve all system pressure.
