Row Details

A59325-UN-19FEB07

Menu

A59551-UN-08MAR07

Planter Button

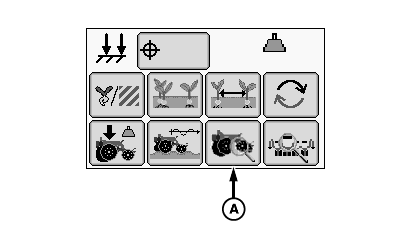

A67004-UN-30APR10

Row Details Button

A - Row Details Button

Select Menu >> Planter button.

When row details page button (A) is selected the row detail page is displayed.

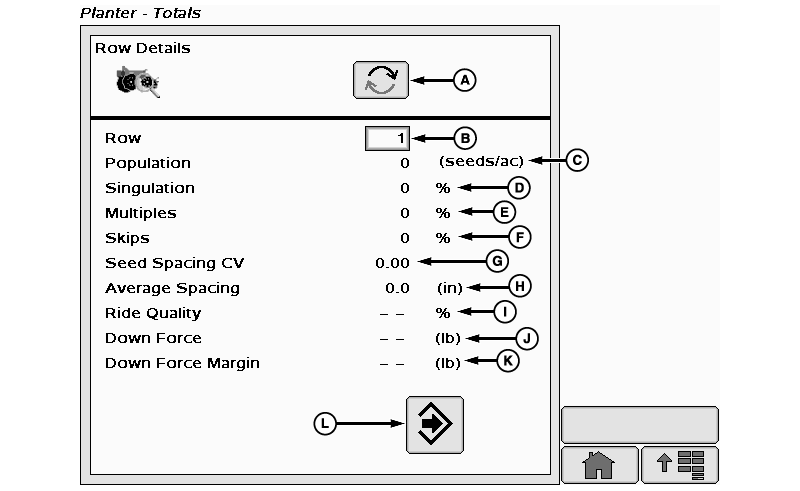

A67801-UN-02JUL10

A - Row Advance Button

B - Row Selection Input Box

C - Population Field

D - Singulation Field

E - Multiples Field

F - Skips Field

G - Seed Spacing Coeffieient of Variation

H - Average Spacing Field

I - Ride Quality

J - Down Force Field

K - Down Force Margin Field

L - Return to Main Button

This screen displays active planting data on a per row basis and allows the operator to compare the operation of one row to another.

(A) Row advance button changes row details column to the next row in sequence.

(B) Row selection input box allows operator to input row number to view.

(C) Population field displays seed per area.

(D) Singulation percentage

(E) Multiples percentage

(F) Skips percentage

(G) Seed spacing Coeffieient of Variation (CV)

(H) Average spacing

(I) Ride Quality

(J) Down force pressure

(K) Down force margin pressure

(L) Return to main button changes screen back to previous view.

Screen Area Information

Planter - Totals - Planter - Totals
Row Details - Row Details
