Alarms and Limits Setup Page

The Alarms and Limits Setup Screen allows the operator to adjust the levels at which cautions and alarms occur for each of the SeedStar™ XP monitor features.

If any of the monitored values go below the alarm set point, the bar graph and background of the numerical display will change to red.

Enter “0” in any of the alarm set point boxes to disable the alarm for that function.

1.
   A59325-UN-19FEB07

   Menu


   A59551-UN-08MAR07

   Planter Button

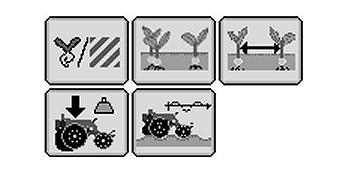

   A67768-UN-16JUN10

   SeedStar XP Monitor Buttons


   H85801-UN-14JUN06

   Enter

   Select Menu >> Planter button.

---




2. Select and hold anySeedStar XP Monitor button for 4 seconds.

3. Select Singulation Alarm Box to enter the minimum acceptable singulation percentage. Default singulation alarm setting is 92 percent.

4. Select Spacing CV Alarm Box to enter the minimum acceptable coefficient of variation value. Default spacing alarm setting is 0.35.

5. Select Margin Alarm Box to enter the acceptable range for row unit down force margin. Default margin alarm setting is 133 kg (30 lb.).

6. Select Ride Quality Alarm Box to enter the minimum acceptable ride quality percentage. Default ride quality alarm setting is 90 percent.

7. When complete select Enter.

Screen Area Information

Planter Configuration - Planter Configuration
Alarms and Limit Setup - Alarms and Limit Setup
Sigulation Alarm - Sigulation Alarm
Spacing Alarm - Spacing Alarm
Margin Alarm - Margin Alarm
Ride Quality Alarm - Ride Quality Alarm
