Integrated Pneumatic Down Force Air Pressure Sensor

1.
   A59325-UN-19FEB07

   Menu


   A59551-UN-08MAR07

   Planter Button


   A59172-UN-29JAN07

   Configuration Softkey


   H85801-UN-14JUN06

   Continue


   A59369-UN-20FEB07

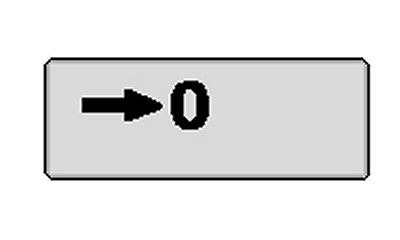

   Zero Sensor Button

   Select Menu >> Planter button >> Configuration softkey >> Sensor tab.

---




2. Select PDF Air Pressure from drop down box.

3. Select Step Value, enter a value for the pneumatic down force system to increase or decrease when adjustment arrows are used to make changes.

4. Select PDF Low Alarm to set the pressure to determine margin. The default setting from the factory is 40 lbs.

5. Select Cal Value input box and enter the calibration value of 494.00.

6. NOTE: Current down force is displayed on bottom left of screen.

   Relieve air pressure prior to depressing the Zero Sensor button.

Screen Area Information

Planter Configuration - Planter Configuration
Sensor - Sensor
PDF Air Pressure - PDF Air Pressure
Step Value - Step Value
PDF Low Alarm - PDF Low Alarm
Cal Value - Calibration Value
To Zero Air Pressure Sensor: - To Zero Air Pressure Sensor:
Relieve Air Pressure and Press Continue - Relieve Air Pressure and Press Continue
