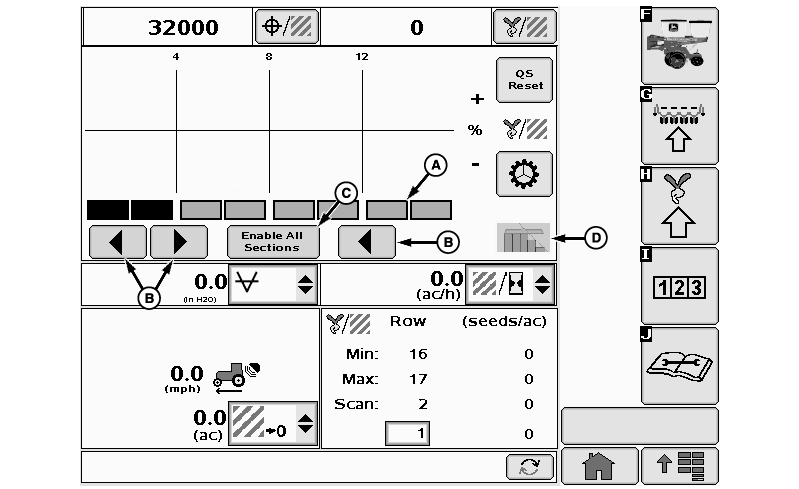

Machines with RowCommand™

A67788-UN-30JUN10

A - Drive Indicator

B - Command Buttons

C - All On Button

D - Swath Icon (If Equipped)

Select buttons (B) to turn sections on and off manually, starting from the outside of the planter. Select button (C) to enable all sections. Swath icon (D) indicates sections controlled by SwathControl™ if equipped.

NOTE: If numerous RowCommand™ clutches are simultaneously energized (meters disengaged), a tractor "Low Voltage" warning can occur due to limited alternator output. Reduce electrical load or increase engine RPM.

RowCommand™ Indicators (A)
Indicator Color	RowCommand™ Activity
Green	Section is active and detected by system. (Meter engaged)
Black	Section deactivated manually by operator using arrows or half-width disconnect switch.
Neutral With Black Border	Section deactivated by SwathControl™ prescription.
Not Visible	Section is not responsive. Row continues to plant, but section cannot be controlled with RowCommand™. A warning alerts operator to failure.
