Machines with Integrated Pneumatic Down Force

A67792-UN-20JUL10

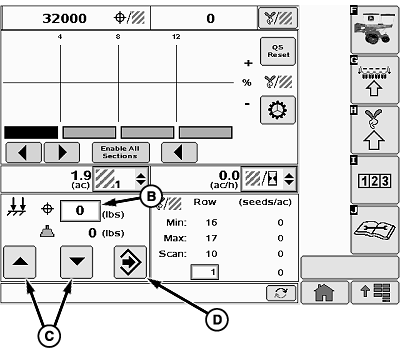

A67793-UN-29JUN10

A - Down Force Target Button

B - Down Force Input Box

C - Increase and Decrease Arrows

D - Enter

E - Indicator Arrows

Select the down force target button (A) to open the down force input screen.

Set target row unit down force by using the down force input box (B) or the increase or decrease arrows (C).

When complete select enter (D).

Indicator arrows (E) are displayed as a visual indication that the system is increasing or decreasing pneumatic down force pressure.
