Half Screen Layout

NOTE: Half screen layout and multiple home pages are only available when John Deere™ SeedStar™ 2 Monitor is used with a John Deere™ Greenstar™ display.

NOTE: Half screen layout must be set using layout manager.

A67778
A67778-UN-30JUN10

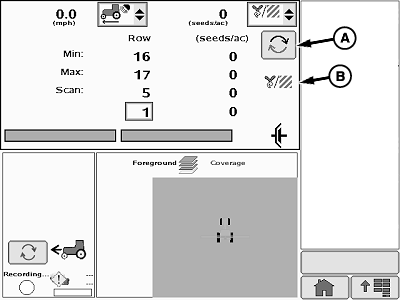

Scan Mode

A67779
A67779-UN-30JUN10

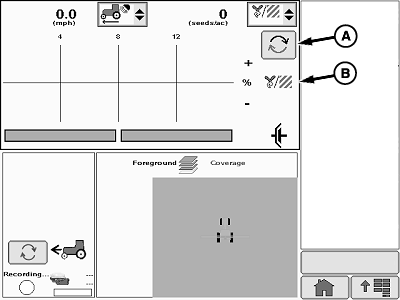

Planter at a Glance Mode

A67787
A67787-UN-30JUN10

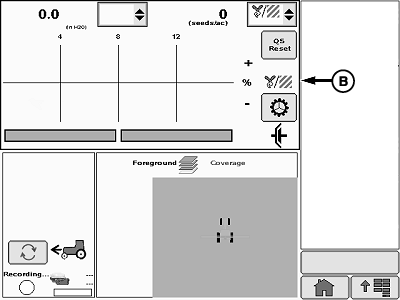

Planter at a Glance (Variable Rate Drive)

A67789
A67789-UN-30JUN10

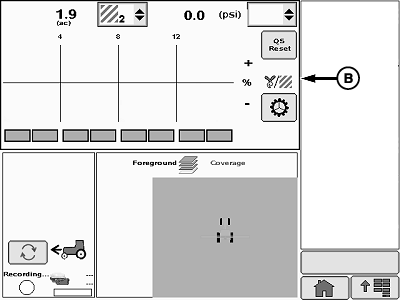

Planter at a Glance (RowCommand)

A67794
A67794-UN-30JUN10

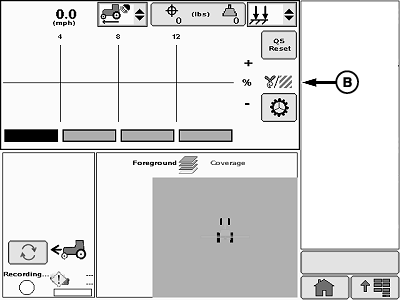

Planter at a Glance (Integrated Pneumatic Down Force)

A - Toggle Button

B - Half Screen

Select toggle button (A) to switch between Scan Mode and Planter at a Glance Mode. When half screen (B) layout is selected, less information is presented in screen area. Error messages do not appear on half screen. Return to full screen mode to view error messages when an audible alert signals an error.

To set up screen layout (see SCREEN LAYOUT MANAGER in How to Use Monitor section).

To enter full screen mode and access configuration, totals, and diagnostic softkeys, select Menu >> Planter application button.

John Deere is a trademark of Deere & Company

OUO6064,00001CB-19-20100720
