Warning Screens for SeedStar™ 2

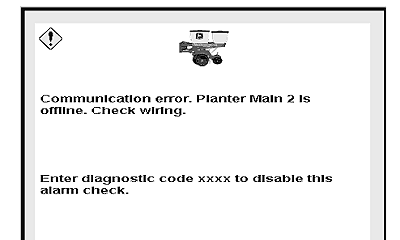

A67965
A67965-UN-01JUL10

Communication error. Planter Main 2 is offline. Check wiring. Enter diagnostic code 111111 to disable this alarm check.

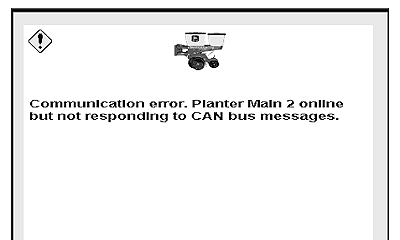

A67966
A67966-UN-01JUL10

Communication error. Planter Main 2 online but not responding to CAN bus messages.

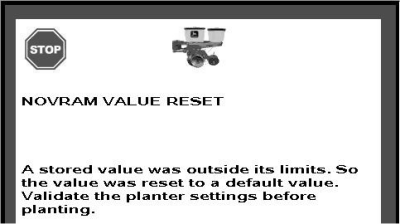

A61406
A61406-UN-19NOV07

NOVRAM VALUE RESET

A stored value was outside its limits. The value was reset to a default value. Validate the planter settings before planting.

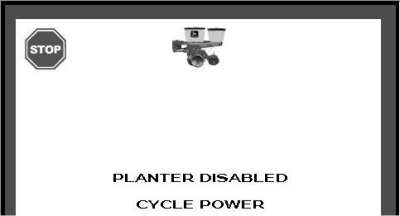

A61407
A61407-UN-19NOV07

PLANTER DISABLED CYCLE POWER

Planter is not operational. To restore operation, cycle power.

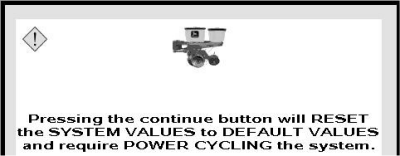

A61408
A61408-UN-19NOV07

Pressing the continue button resets the system values to default values and requires power cycling the system.

Confirms prior actions taken before storing values when power is cycled.

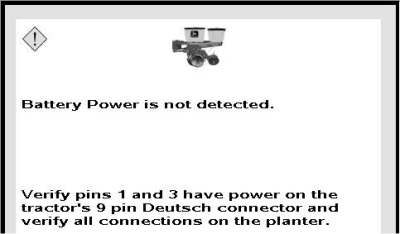

A61409
A61409-UN-19NOV07

Battery power is not detected.

12VDC is not present across pin 1 (ground) and pin 3 (12VDC) of 9 pin ISO connector. Refer to tractor operator’s manual and check fuses.

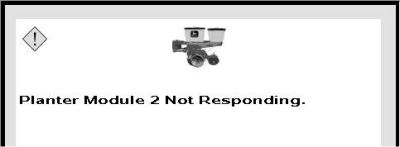

A61410
A61410-UN-19NOV07

Planter module 2 not responding. Planters with more than 24 rows.

Controller PA1 is not communicating. Verify all planter electrical connections are latched securely and harnesses are not damaged.

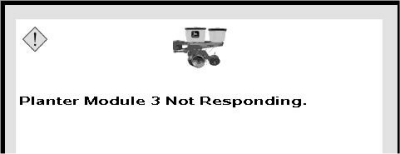

A61411
A61411-UN-19NOV07

Planter module 3 not responding. Planters with more than 48 rows.

Controller PA2 is not communicating. Verify all planter electrical connections are latched securely and harnesses are not damaged.

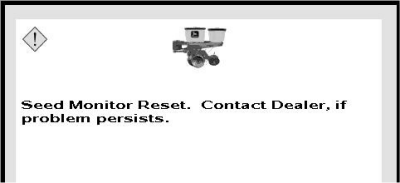

A61412
A61412-UN-19NOV07

Seed monitor reset. Contact dealer, if problem persists.

Intermittent communication problems exist. Verify all planter electrical connections are clean and latched securely and harnesses are not damaged.

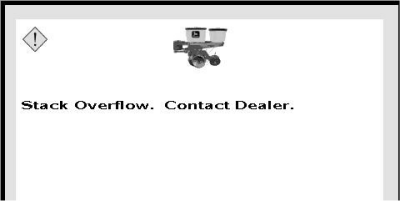

A61413
A61413-UN-19NOV07

Stack overflow. Restart controller. If problem persists contact dealer.

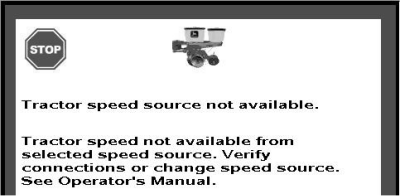

A61414
A61414-UN-19NOV07

Tractor speed source not available.

Tractor speed not available from selected speed source. Verify connection or change speed source. See operator’s manual.

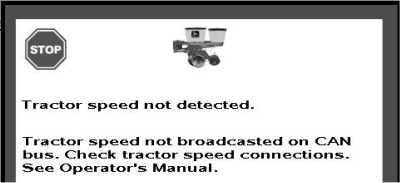

A61415
A61415-UN-19NOV07

Tractor speed not detected. Tractor speed not broadcasted on CAN Bus. Check tractor speed connections. See tractor operators manual.

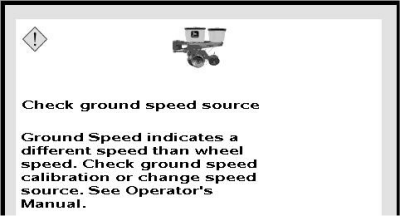

A61416
A61416-UN-19NOV07

Check ground speed source.

Ground speed indicates a different speed than tractor ground speed. Check ground speed calibration or tractor speed source. See operator’s manual.

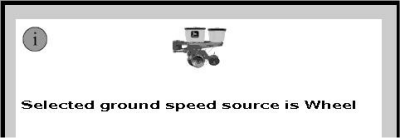

A61418
A61418-UN-19NOV07

Selected ground speed source is wheel.

Use radar for VRD and seed monitoring for best results.

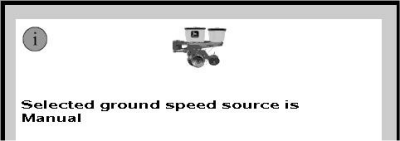

A61419
A61419-UN-19NOV07

Selected ground speed source is manual.

Use radar for VRD and seed monitoring for best results.

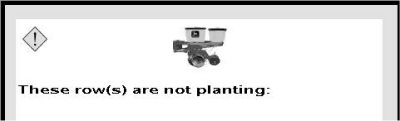

A61420
A61420-UN-19NOV07

These rows are not planting.

Ground speed is above 2 mph. Less than two seeds per second are counted by seed sensor.

On display, press OK button to ignore sensors.

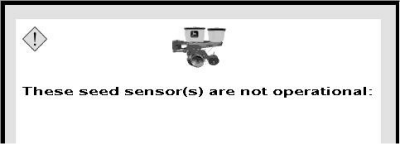

A61421
A61421-UN-19NOV07

These seed sensors are not operational.

Perform seed sensor test or exchange with an operational sensor.

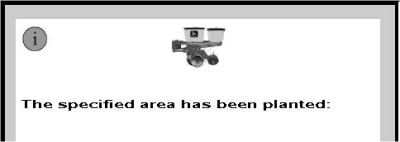

A61422
A61422-UN-19NOV07

The specified area has been planted.

Navigate to Totals screen to reset area.

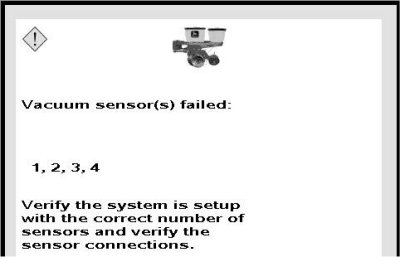

A61423
A61423-UN-19NOV07

Vacuum sensor or circuit failure.

Verify that the system is set up with the correct number of sensors and verify the sensor connections.

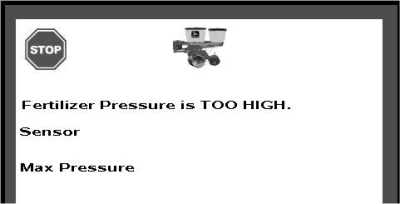

A61431
A61431-UN-19NOV07

Fertilizer pressure is too high.

Sensor number:

Maximum pressure has exceeded operator entered value.

OUO6064,0000206-19-20100729
