Warning Screens for RowCommand™

A61426
A61426-UN-19NOV07

The height sensor is not calibrated.

The height sensor must be calibrated before the system operates correctly.

Refer to height sensor calibration procedures in SETUP BASIC PLANTER CONFIGURATION section of this manual.

A61427
A61427-UN-19NOV07

A stop point less than 20 is not recommended.

If the stop point is set too low, there is potential for the drives to shut off when traveling over uneven terrain.

A63767
A63767-UN-07NOV08

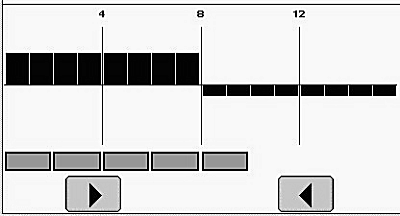

A63768
A63768-UN-07NOV08

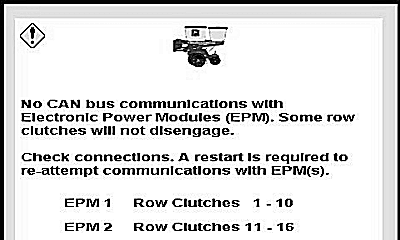

No CAN Bus communications with Electronic Power Modules (EPM). Some row clutches do not disengage.

Check connections. A restart is required to reattempt communications with EPMs.

Warning screen lists EPMs that are currently offline. Control section status bars associated with offline EPMs disappear from Main run page and half-page split run page.

A63769
A63769-UN-07NOV08

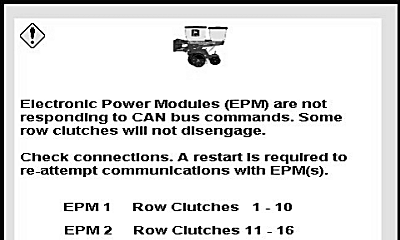

Electronic Power Modules (EPM) are not responding to CAN Bus commands. Some row clutches do not disengage.

Check connections. A restart is required to reattempt communications with EPMs.

Warning screen lists EPMs that are currently not communicating.

A63770
A63770-UN-07NOV08

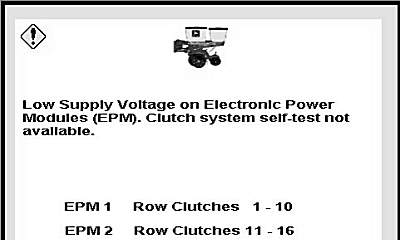

Low Supply Voltage on Electronic Power Modules (EPM). Clutch system self-test is not available.

Warning screen lists EPMs with supply voltage less than 10.5 V.

A63771
A63771-UN-07NOV08

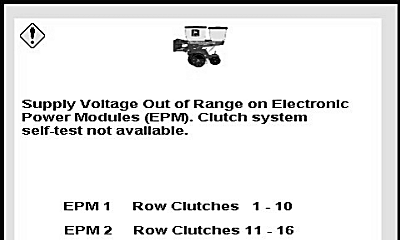

Supply Voltage Out of Range on Electronic Power Modules (EPM). Clutch system self-test is not available.

Warning screen lists EPMs with supply voltage less than 9.0 V.

A63776
A63776-UN-11NOV08

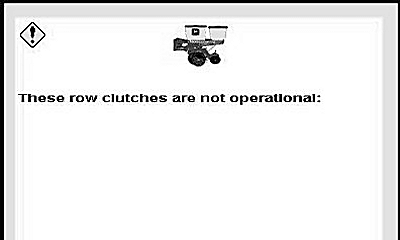

Row Clutch Diagnostic Self-test at Startup.

Once EPMs are determined to be online and communicating, system performs test and indicates “These row clutches are not operational”, followed by a list.

A63778
A63778-UN-10NOV08

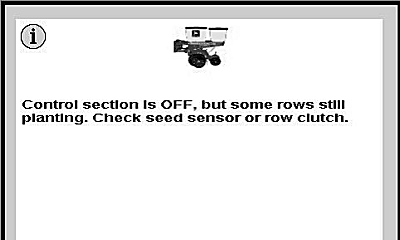

Control section is OFF, but some rows still planting. Check seed sensor or row clutch.
